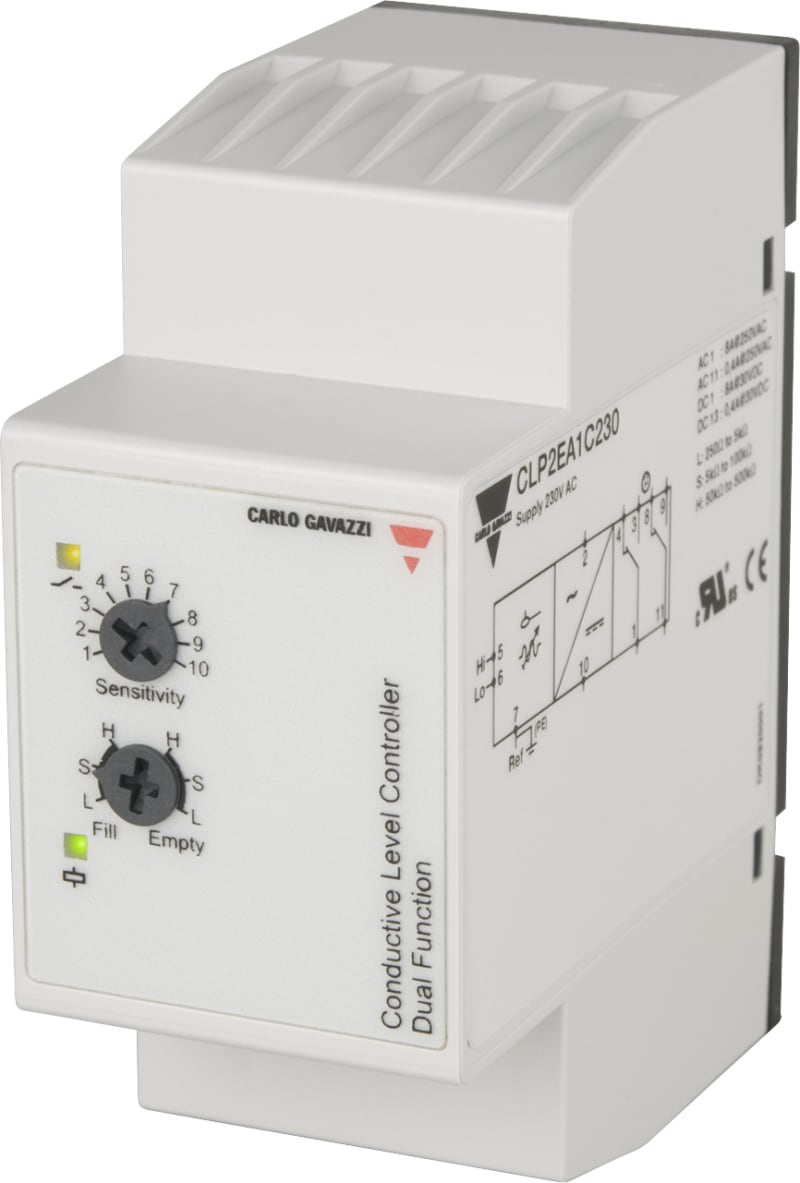

Level Relay 2 level Plug 230VAC (CLP2EA1C230)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CLP2EA1C230 Manufacturer description: Conductive 2-point level controller, plug in mount, filing-emptying function, sensitivity 250 ohm -500 Kohm, 2 x DPDT relay output, supply voltage 230VAC, 35.5x81x60,2mm housing, IP20. CLP2EA1C230 Level Relay.
Technical Specifications
- Manufacturer part number (MPN)
- CLP2EA1C230
- EAN / GTIN
- 5709870381374
- Sales unit
- pcs
- Number of input probes
- 2
- Adjustable sensitivity
- No
- Min on-delay time
- 1 s
- Max on-delay time
- 1 s
- Min off-delay time
- 1 s
- Max off-delay time
- 1 s
- Rated operating voltage
- 0 V ... 0 V
- Connection type
- Plug-in connection
- Product width
- 35.5 mm
- E-number (NO)
- 4367624
- E-number (SE)
- 3864380
- Operating voltage AC 50 Hz
- 0–5 V
- Operating voltage AC 60 Hz
- 0–5 V
- Supply voltage AC 50 Hz
- 195–265 V
- Supply voltage AC 60 Hz
- 195–265 V
- Rated switch current
- 8 A
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Plug-in connection
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Voltage type for actuating
- AC
- Number of inputs for electrodes
- 2
- Min. adjustable operate delay time
- 1 s
- Max. permitted operate delay time
- 1 s
- Min. adjustable off-delay time
- 1 s
- Max. permitted off-delay time
- 1 s
- Number of contacts as change-over contact
- 2
- Physical measurement principle
- Conductive
- Width
- 35.5 mm
- Height
- 81 mm
- Depth
- 60.2 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870381374
- SAP 1000250096
- Code 81125123
Product Documentation
