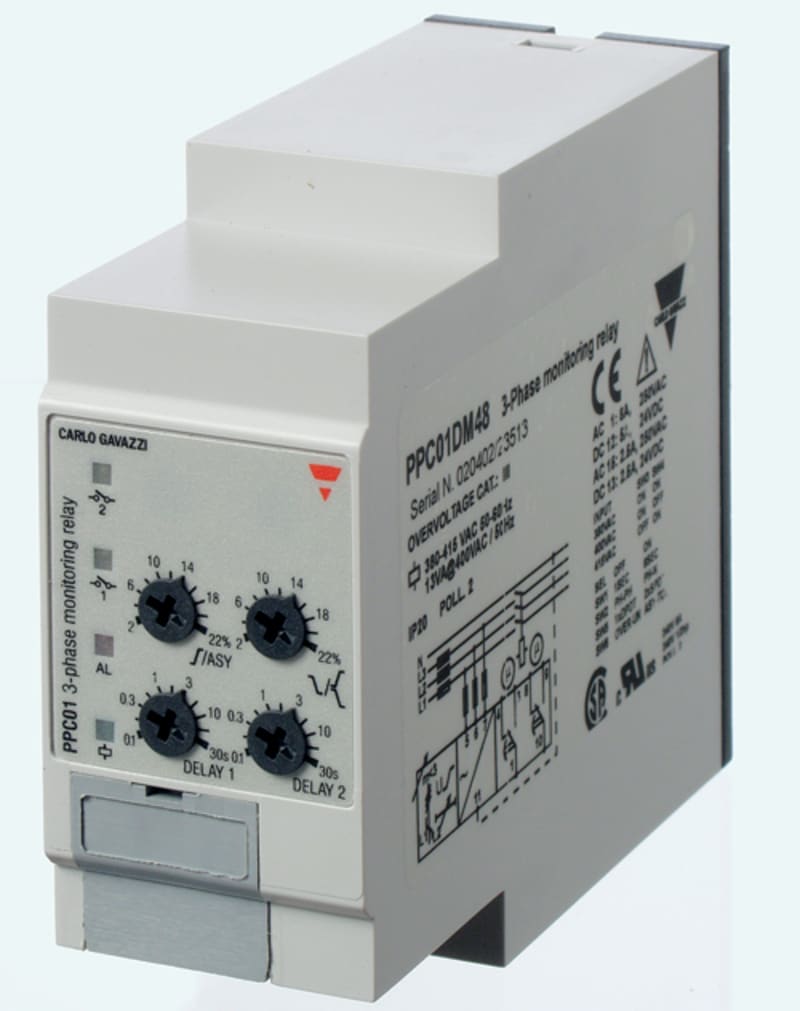

3-Phase Supply Monitoring Relay (PPC01DM48)

Carlo Gavazzi PPC01DM48 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, asymmetry, tolerance, over and undervoltage, nominal range 380-480 V AC, delay on alarm 0.1-30 s, 2 SPDT relay outputs, 36 mm plug-in housing. PPC01DM48 Phase monitoring relay.

Manufacturer part number (MPN)

PPC01DM48

EAN / GTIN

8030956001051

Sales unit

pcs

Mounting

Plug-in

Function

Phase sequence; Phase loss; Overvoltage; Undervoltage; Voltage asymmetry

3-phase voltage range

380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

2 relays

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America

Setting method through NFC

No

E-number (NO)

4367595

E-number (SE)

3864695

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

380–415 V

Rated control supply voltage AC 60 Hz

380–415 V

Voltage type for actuating

AC

Voltage measuring range

380–415 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

2

Width

36 mm

Height

80 mm

Depth

94 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956001051
• SAP 1000140289
• Code 848606
