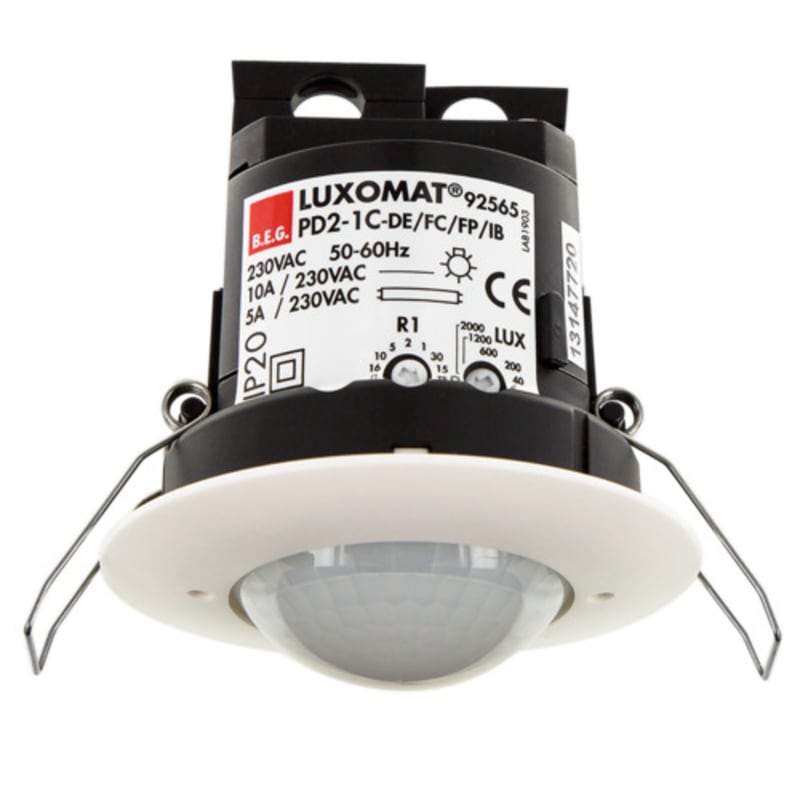

Carlo Gavazzi Ceiling-Recessed Presence Detector, 360°, Passive Infrared
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 92565 is a passive infrared presence detector for flush ceiling mounting with retaining springs and a potential-free contact. 360-degree scan angle, maximum reach 5 m frontally and sideways, coverage up to 78 m². Nominal voltage 230 V AC.
Technical Specifications
- Manufacturer part number (MPN)
- 92565
- EAN / GTIN
- 4007529925650
- Sales unit
- pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Movement sensor
- Height
- 85 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 1 s
- Switch-off delay
- 1 s
- Built-in depth
- 85 mm
- Diameter
- 84 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 5 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 165 A
- Material
- Plastic
- Diameter reach on floor
- 10 m
- RAL-number (similar)
- 9010
- Control current
- 17 mA
- Scan angle
- 360 °
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.5 m
- Number of switching zones
- 3
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 50 mm
- Max. presence range
- 78 m²
- Max. switching power LED
- 10 W
- Sensor type
- Passive infrared
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 4007529925650
- SAP 1000515982
- Code 8962544
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
SMH desentral markiserele AC
SHDRODC230
Carlo Gavazzi

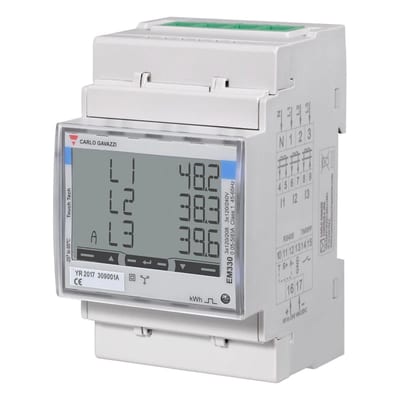

Meter 1-/3 Phase Mbus, MID (EM330DINAV53HM1PFB)
Carlo Gavazzi

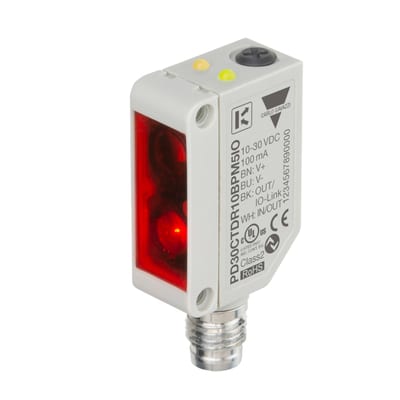

Photoelectric Sensor IO link Direct 1M M8 plug (PD30CTDR10BPM5IO)
Carlo Gavazzi

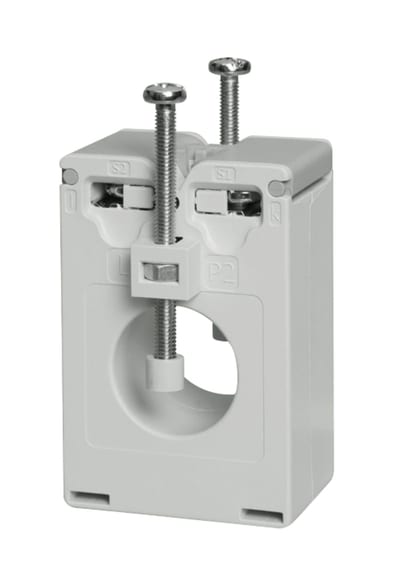

Current Transformer 250/5A (CTD1X2505AXXX)
Carlo Gavazzi

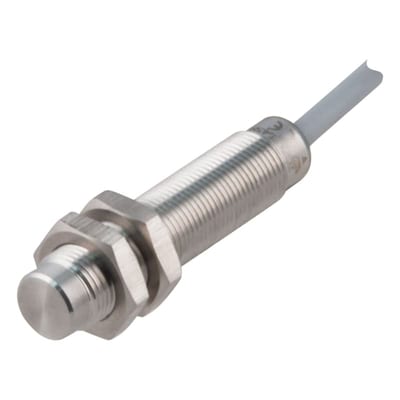

Inductive Transmitter ICF12 M. 2M Cable IO-LINK (4341940)
Carlo Gavazzi
PTC-element 13W 110-250VAC/DC
RC016-13W
Carlo Gavazzi

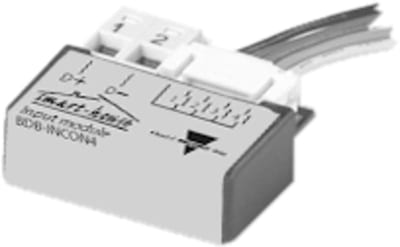

SMH decentralised contact input 4 in
