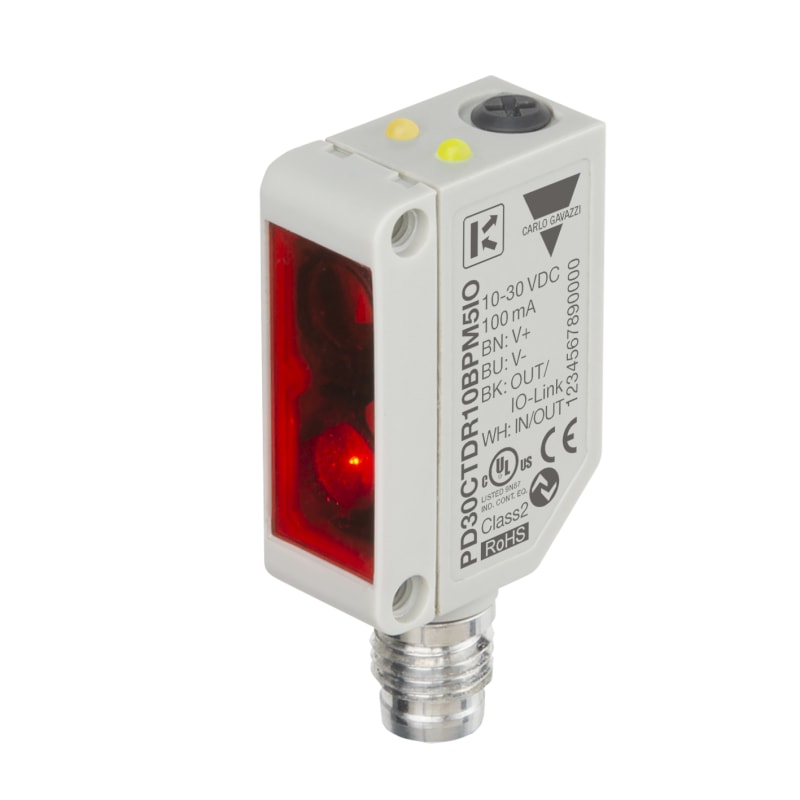

Photoelectric Sensor IO link Direct 1M M8 plug (PD30CTDR10BPM5IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PD30CTDR10BPM5IO Manufacturer description: Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67. Photocell IO link DIRECT 1M M8 plug plastic.
Technical Specifications
- Manufacturer part number (MPN)
- PD30CTDR10BPM5IO
- EAN / GTIN
- 5709870398693
- Sales unit
- pcs
- Rated operating distance (Sn)
- 0 mm ... 1000 mm
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection Type
- Connector M8
- Housing type
- Rectangular
- Housing material
- Plastic
- Light source
- Polarity free red light
- Sensing mode
- Light/dark switching
- Degree of protection
- IP67
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4301289
- Voltage type
- DC
- Max. output current
- 100 mA
- Suitable for safety functions
- No
- With time function
- Yes
- Switching frequency
- 1000 Hz
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Parameterization
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Laser protection class
- None
- Type of light
- Polarized red light
- Light dot
- 17662 mm²
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 100 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 0.5 ms
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- Yes
- Wavelength of the sensor
- 620 nm
- Material of optical surface
- Plastic
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Width sensor
- 10.8 mm
- Height of sensor
- 30 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 17 mm
- Max. switching distance
- 1000 mm
- With reflector
- No
- With other analogue output
- No
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870398693
- SAP 1200583185
- Code 82959153
Product Documentation
