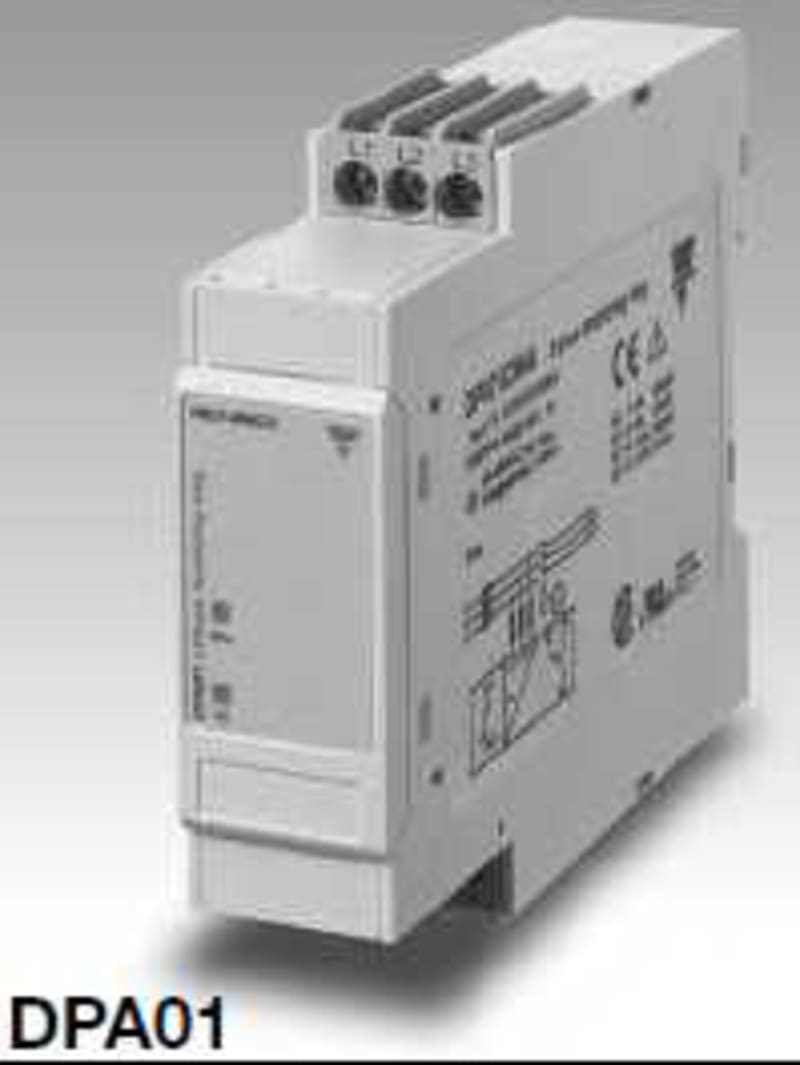

Phase Sequence and Phase Loss Relay (DPA01DM23)

Carlo Gavazzi DPA01DM23 Manufacturer description: 3-phase loss and sequence monitoring relay, nominal range 208-240 V AC, DPDT relay outputs, regenerated voltage detection, 22.5 mm DIN-rail housing. DPA01DM23 Phase monitoring relay.

Manufacturer part number (MPN)

DPA01DM23

EAN / GTIN

8030956000528

Sales unit

pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Phase sequence

3-phase voltage range

208-240 Vac

Frequency range

50-60 Hz

Output

2 relays

Time delay

No delay adjustment

Approvals, marks, declarations

for Europe; for North America; for China

Setting method through NFC

No

E-number (NO)

4367585

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

208–240 V

Rated control supply voltage AC 60 Hz

208–240 V

Voltage type for actuating

AC

Voltage measuring range

208–240 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0 s

Number of contacts as change-over contact

2

Width

22.5 mm

Height

83.5 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000528
• SAP 1000140295
• Code 8173787
