SSR 230VAC/50A 24-265VAC
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RM1A23A50 Manufacturer description: 1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 24 - 265 Vac (650 Vp), Rated current (Ie): 50 Aac, Control voltage (Uc): 20 - 280 Vac / 22 - 48 Vdc, Built-in overvoltage protection. Carlo Gavazzi RM1A23A50.
Technical Specifications
- Manufacturer part number (MPN)
- RM1A23A50
- EAN / GTIN
- 5350035320501
- Sales unit
- pcs
- Output switching mode
- Zero cross
- Number of poles
- 1
- Rated current AC-51
- 50 A
- Rated current AC-53a
- 15 A
- Operating voltage
- 24 V ... 265 V
- Control voltage AC
- 20 V ... 280 V
- Control voltage DC
- 22 V ... 48 V
- Power connection
- Screw with captive clamp
- E-number (NO)
- 4134733
- E-number (SE)
- 4029265
- Degree of protection (IP)
- IP20
- Width
- 44.8 mm
- Operating voltage AC 50 Hz
- 24–265 V
- Operating voltage AC 60 Hz
- 24–265 V
- Depth
- 58.2 mm
- Height
- 28.8 mm
- Complete with socket
- Yes
- With detachable clamps
- No
- With LED indication
- Yes
- Type of switch function
- Normally open contact (NO)
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-51
- 50 A
- Rated operation current Ie at AC-53a
- 15 A
- Number of phases
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5350035320501
- SAP 1000140606
- Code 8645181
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Cabinet lighting with magnet, spring
2400265
Carlo Gavazzi
Carlo Gavazzi SMH Weather Station 24 V DC, GPS, Modbus RS-485
SHOWEAGPS
Carlo Gavazzi
Network Analyser 96X96 RS485 (WM1596AV53XOSX)
Carlo Gavazzi
SSR 3-F. 400VAC/75A 4-32VDC (RZ3A40D75)
Carlo Gavazzi

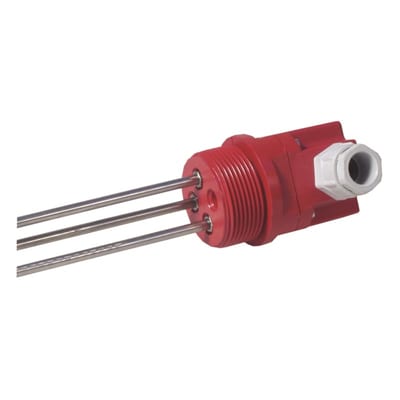

Level Probe Conductive 4 Electrodes (VNY4)
Carlo Gavazzi

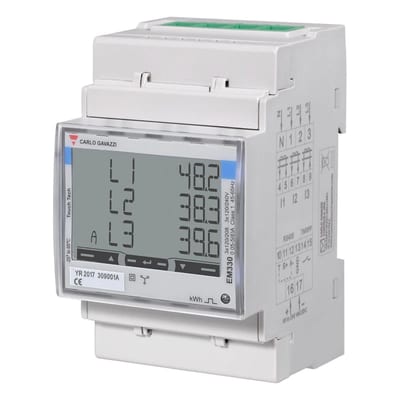

Meter 1-/3 Phase RS485, MID (EM330DINAV53HS1PFB)
Carlo Gavazzi

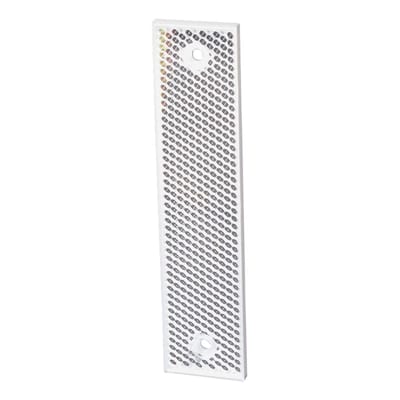

Reflector 46X186MM (ER42182)
Carlo Gavazzi

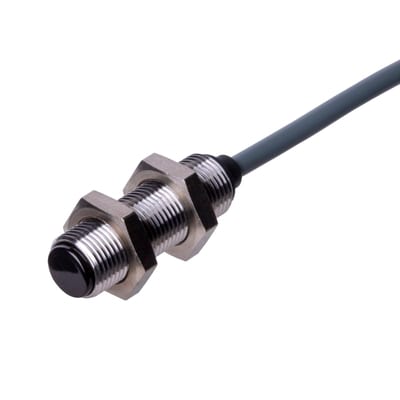

Photoelectric Sensor sender M12 for PAM03
