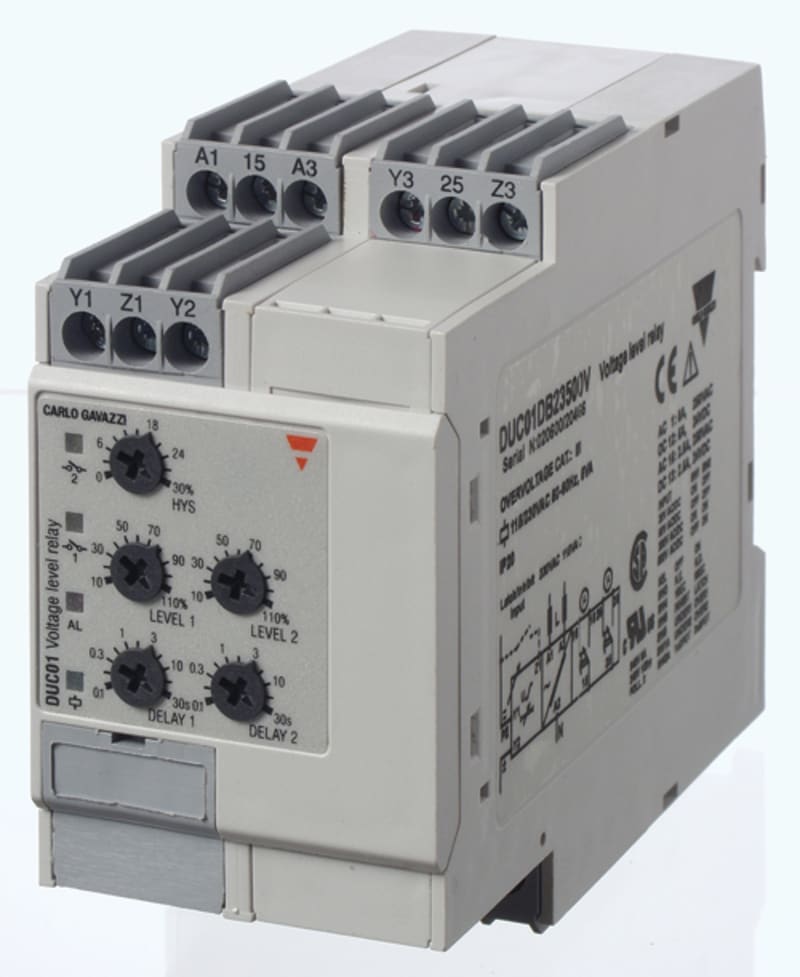

Voltage Relay AC/DC 0-500V 2XRELE,230VAC
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi DUC01DB23500V Manufacturer description: 1-phase AC/DC over and undervoltage monitoring relay, nominal range 2-500 V AC/DC, 2 SPDT relay outputs, 45 mm DIN-rail housing. DUC01DB23500V Spenningsrelé.
Technical Specifications
- Manufacturer part number (MPN)
- DUC01DB23500V
- EAN / GTIN
- 8030956000719
- Sales unit
- pcs
- Supply Voltage
- 115/230 V AC
- Mounting
- Industrial DIN-rail
- 1-phase ac/dc voltage function
- Over and undervoltage
- Monitored voltage
- Monitoring external voltage
- 1-phase voltage range
- 24-240 Vac/dc; 208-480 Vac; 2-500 Vac/dc
- Output
- 2 relays
- Time delay
- Delay on alarm
- E-number (NO)
- 4367579
- E-number (SE)
- 3864681
- Type of electric connection
- Screw connection
- Type of voltage measuring range
- AC/DC
- Rated control supply voltage AC 50 Hz
- 115–230 V
- Rated control supply voltage AC 60 Hz
- 115–230 V
- Voltage type for actuating
- AC
- Min. adjustable delay-on energization time
- 0.1 s
- Max. permitted delay-on energization time
- 30 s
- Min. adjustable off-delay time
- 0.1 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 2
- Width
- 45 mm
- Height
- 80 mm
- Depth
- 99.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956000719
- SAP 1000140506
- Code 8645068
Product Documentation
