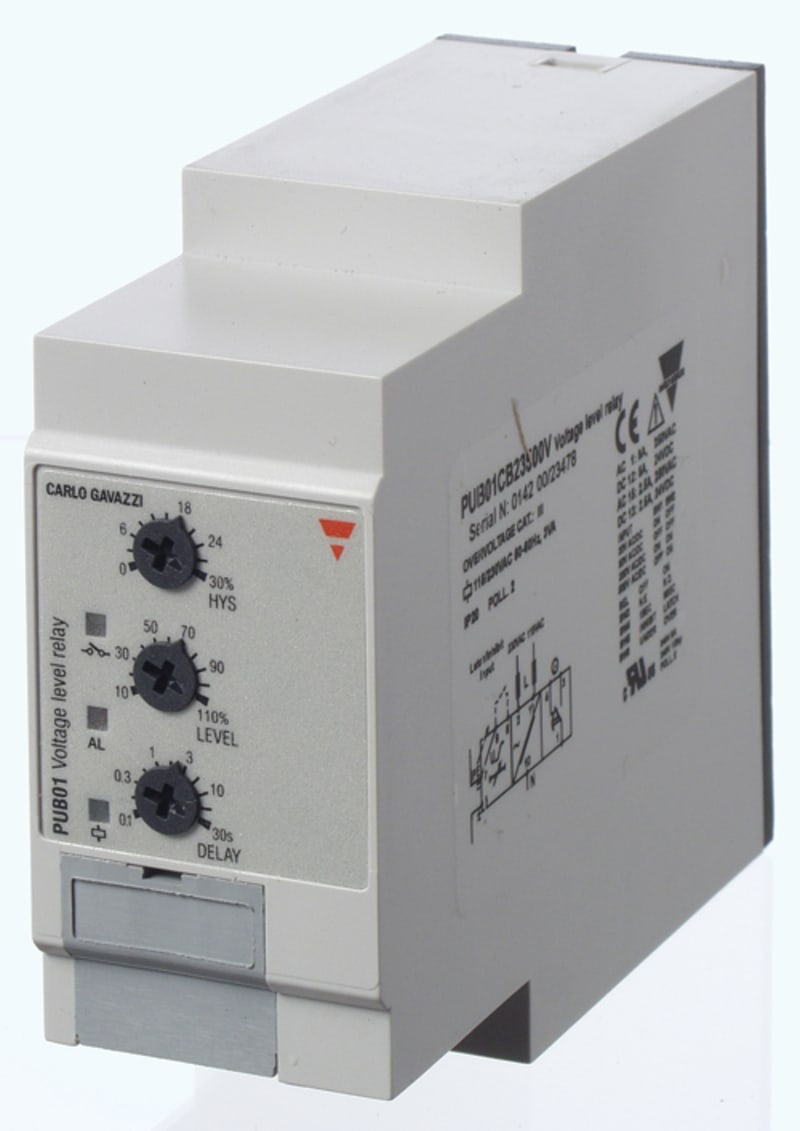

Voltage Relay AC/DC 0-500V, 230VAC (PUB01CB23500V)

Carlo Gavazzi PUB01CB23500V Manufacturer description: 1-phase AC/DC over or undervoltage monitoring relay, nominal range 2-500 V AC/DC, SPDT relay output, 36 mm plug-in housing. PUB01CB23500V Spenningsrelé.

Manufacturer part number (MPN)

PUB01CB23500V

EAN / GTIN

8030956001105

Sales unit

pcs

Supply Voltage

115/230 V AC

Mounting

Plug-in

1-phase ac/dc voltage function

Overvoltage; Undervoltage; Over or undervoltage

Monitored voltage

Monitoring external voltage

1-phase voltage range

24-240 Vac/dc; 208-480 Vac; 2-500 Vac/dc

Output

1 relay

Time delay

Delay on alarm

E-number (NO)

4367581

E-number (SE)

3864650

Type of electric connection

Plug-in connection

Type of voltage measuring range

AC/DC

Rated control supply voltage AC 50 Hz

196–265 V

Rated control supply voltage AC 60 Hz

115–230 V

Voltage type for actuating

AC

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

1

Width

36 mm

Height

80 mm

Depth

94 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956001105
• SAP 1000140292
• Code 8173763
