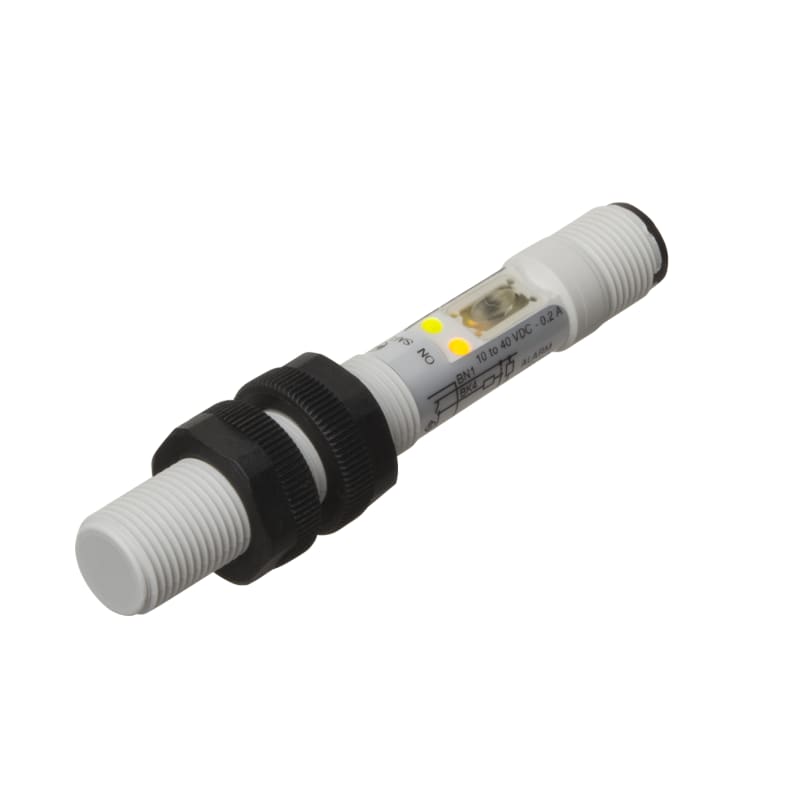

M12 Capacitive transmitter IO-Link M12 plug (CA12CAF04BPM1IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CA12CAF04BPM1IO Manufacturer description: Capacitive Proximity Sensor, Flush mountable, Sensing Range 4mm, Adjustable 0.5-4mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link, M12 4-PIN plug, Housing M12 x 80mm, 4th Gen. Tripleshield, Improved EMC performances, IP67 IP68. Capacitive transmitter with IO-link. M12 in PBT housing. Shielded with koblingsavstand 4mm. M12 plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- CA12CAF04BPM1IO
- EAN / GTIN
- 5709870406459
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 4 mm
- Installation type
- Flush
- Diameter
- 12 mm
- Output type
- PNP/NPN
- Output function
- Configurable
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Plastic
- Rated power supply
- 12 V ... 36 V
- Degree of protection
- IP67, IP68
- E-number (NO)
- 4360116
- Length of sensor
- 80 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 4 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic and non-metallic target
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 50 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870406459
- SAP 1200738461
- Code 83870912
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
SMH 4CH ing pulse or connector
SH2INDI424
Carlo Gavazzi
Time Relay Multifunction (DMB01CM24)
Carlo Gavazzi
IND PROX SENS. ICF18 Plug LONG IO-LINK
4341943
Carlo Gavazzi

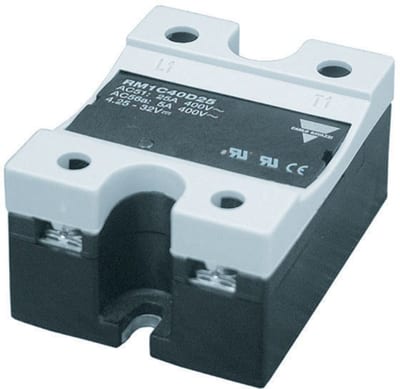

SSR TRANSF. Coupling 400V/50A (RM1C40D50)
Carlo Gavazzi

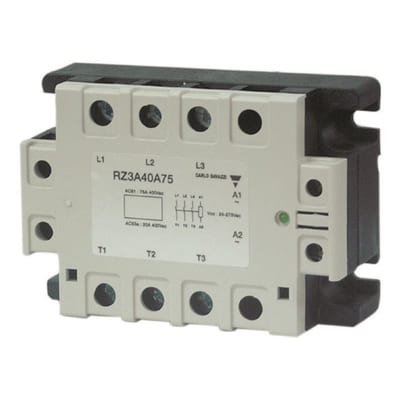

SSR 3-F. 400VAC/75A 24-275VAC (RZ3A40A75P)
Carlo Gavazzi

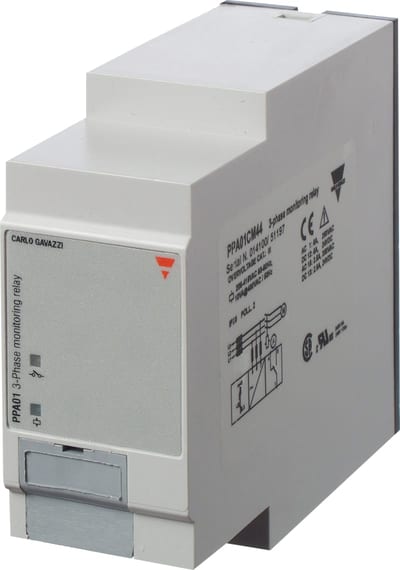

Phase Sequence and Phase Loss Relay (PPA01CM44)
Carlo Gavazzi

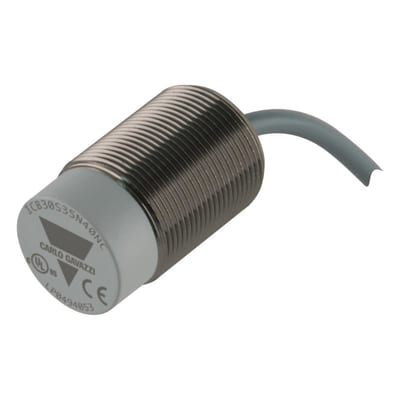

Inductive transmitter M30 PNP NC 2M cable (ICB30S35N40PC)
Carlo Gavazzi

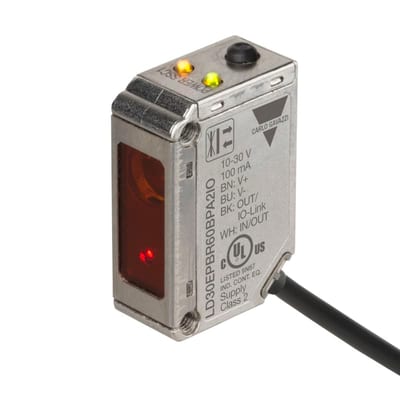

Photoelectric Sensor laser direct IO-Link 600mm (LD30EPBR60BPA2IO)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CA12CAF04BPM1IO?
- CA12CAF04BPM1IO can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CA12CAF04BPM1IO.
- What is the HS code for CA12CAF04BPM1IO?
- The customs tariff (HS) code for CA12CAF04BPM1IO is 9030.90.
- Who manufactures CA12CAF04BPM1IO?
- CA12CAF04BPM1IO is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for CA12CAF04BPM1IO?
- Yes — the CA12CAF04BPM1IO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CA12CAF04BPM1IO?
- The minimum order quantity is 1.
- Is CA12CAF04BPM1IO available?
- Yes — CA12CAF04BPM1IO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
