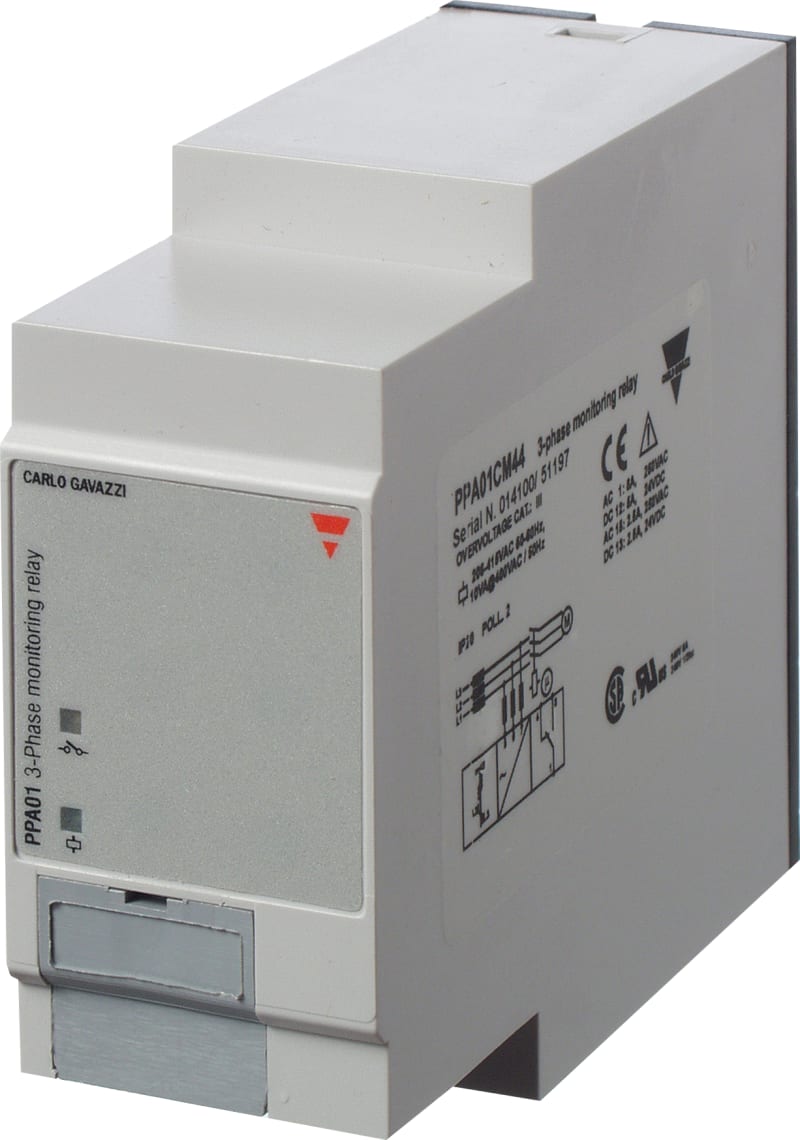

Phase Sequence and Phase Loss Relay (PPA01CM44)

Carlo Gavazzi PPA01CM44 Manufacturer description: 3-phase loss and sequence monitoring relay, nominal range 208-415 V AC, SPDT relay output, regenerated voltage detection, 36 mm plug-in housing. PPA01CM44 Phase monitoring relay.

Manufacturer part number (MPN)

PPA01CM44

EAN / GTIN

8030956000955

Sales unit

pcs

Package quantity

50 pcs

Mounting

Plug-in

Function

Phase loss; Phase sequence

3-phase voltage range

208-240 Vac; 208-480 Vac; 380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

No delay adjustment

Approvals, marks, declarations

for Europe; for North America; for Australia

Setting method through NFC

No

E-number (NO)

4367591

E-number (SE)

3864691

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

208–415 V

Rated control supply voltage AC 60 Hz

208–415 V

Voltage type for actuating

AC

Voltage measuring range

208–415 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0 s

Number of contacts as change-over contact

1

Width

36 mm

Height

80 mm

Depth

94 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000955
• SAP 1000140282
• Code 81132084
