SSR 3-F. 400VAC/75A 24-275VAC (RZ3A40A75P)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RZ3A40A75P Manufacturer description: 3-pole panel mount SSR, Zero-cross switching with over-temperature protection, Operating voltage (Ue): 24 - 440 Vac (800 Vp), Rated current (Ie): 75 Aac, Control voltage (Uc): 24 - 275 Vac / 24 - 50 Vdc, Built-in overvoltage protection. RZ3A40A75P Solid State relay.
Technical Specifications
- Manufacturer part number (MPN)
- RZ3A40A75P
- EAN / GTIN
- 5350035403969
- HS code
- 8536.90
- Sales unit
- pcs
- Output switching mode
- Zero cross
- Number of poles
- 3
- Rated current AC-51
- 75 A
- Rated current AC-53a
- 20 A
- Operating voltage
- 24 V ... 440 V
- Control voltage AC
- 24 V ... 275 V
- Control voltage DC
- 24 V ... 50 V
- Power connection
- Screw with captive clamp
- E-number (NO)
- 4134792
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5350035403969
- SAP 1200454445
- Code 82528983
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Phase Sequence and Phase Loss Relay (PPA01CM44)
Carlo Gavazzi
Inductive transmitter M30 PNP NC 2M cable (ICB30S35N40PC)
Carlo Gavazzi
Photoelectric Sensor laser direct IO-Link 600mm (LD30EPBR60BPA2IO)
Carlo Gavazzi
Dupline 8-Channel receiver 10-30VDC
G34305521800
Carlo Gavazzi

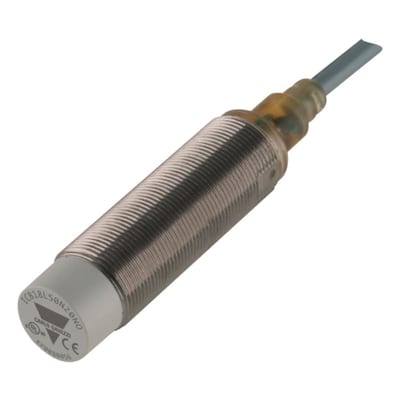

Inductive transmitter M18 PNP NO 2M cable (ICB18L50N20PO)
Carlo Gavazzi

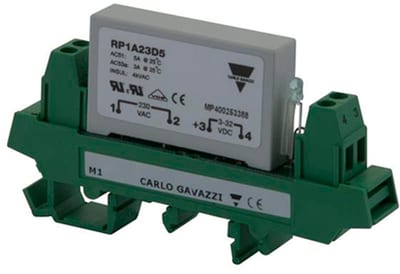

SSR OUTPUT Module 230VAC/5A
RP1A23D5M1
Carlo Gavazzi

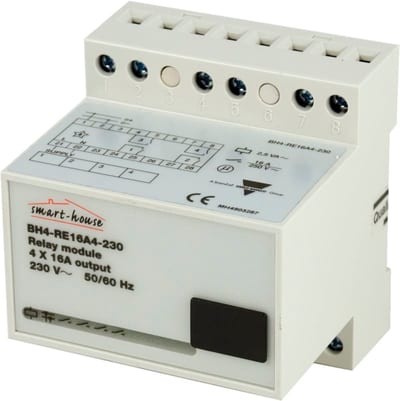

SMH Relay Output 4X16A 230VAC
