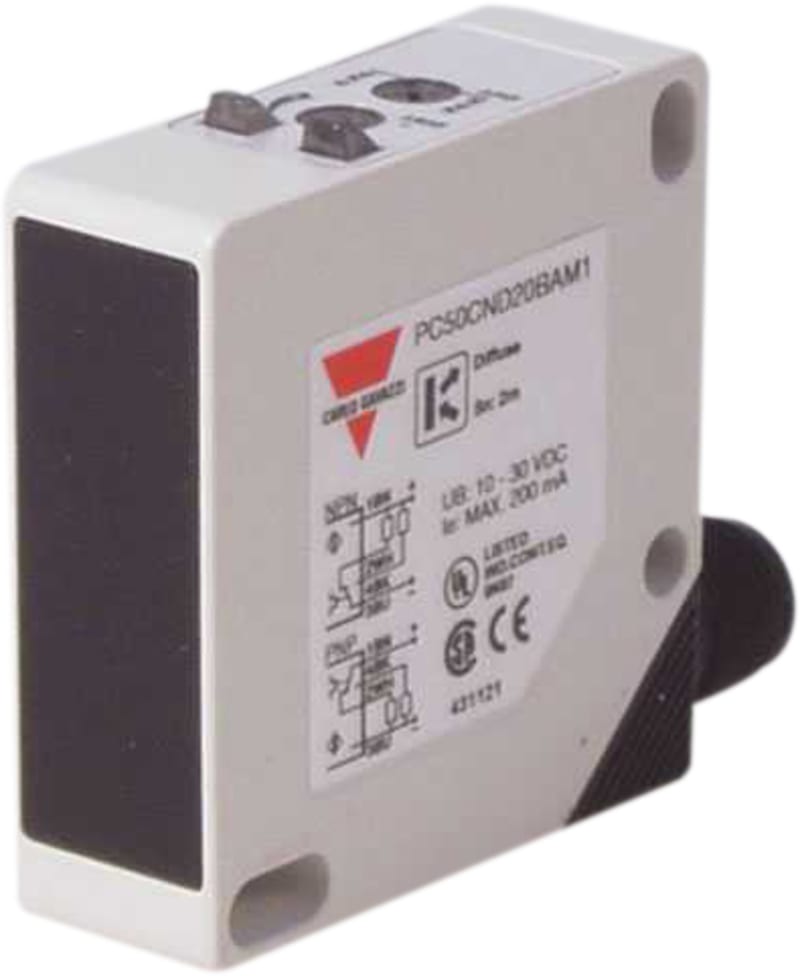

FOTO DIR.DC,NO+NC,Plug (PC50CND20BAM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PC50CND20BAM1 Manufacturer description: Diffuse-reflective Photoelectric Sensor, range 2000 mm, Infrared modulated light 880nm, Power Supply 10-30VDC, PNP/NPN, NO+NC, M12 Plug, IP67. PC50CND20BAM1 Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- PC50CND20BAM1
- EAN / GTIN
- 5709870269535
- Sales unit
- pcs
- Rated operating distance (Sn)
- 20 mm ... 2000 mm
- Output type
- PNP/NPN
- Output function
- Complementary (NO+NC)
- Connection Type
- Connector M12
- Housing type
- Rectangular
- Housing material
- Plastic
- Light source
- Infrared light
- Sensing mode
- Light/dark switching
- Degree of protection
- IP67
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4351116
- E-number (SE)
- 3834870
- Voltage type
- DC
- Max. output current
- 100 mA
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Anticoincidence
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Laser protection class
- None
- Type of light
- Infrared light
- Light dot
- 9500 mm²
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Response time
- 1 ms
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 300–2000 mm
- Wavelength of the sensor
- 880 nm
- Material of optical surface
- Plastic
- AWG-number
- 22
- Width sensor
- 10 mm
- Height of sensor
- 30 mm
- Length of sensor
- 20 mm
- Max. switching distance
- 2000 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870269535
- SAP 1200454397
- Code 82528949
Product Documentation
