UK Närvarodetektor PD3-1C-INF
Pricing
Request a quote
We reply within 24 hours
Product Description

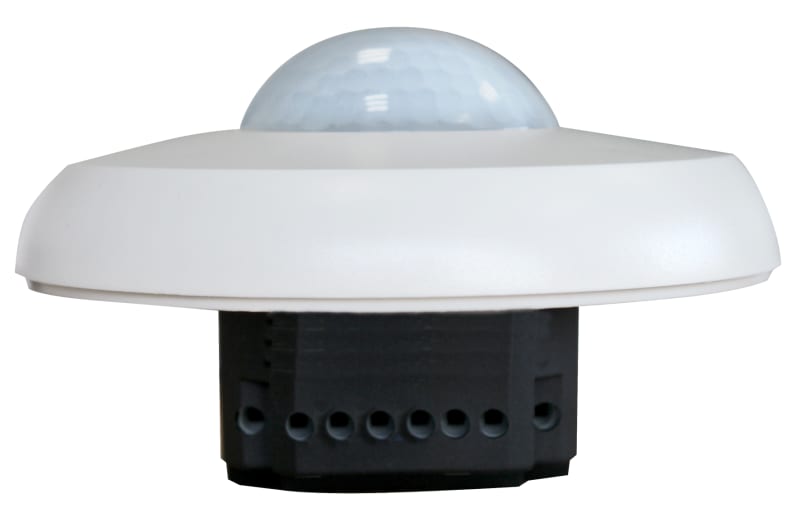

Carlo Gavazzi 92186 Motion detector for wall box in ceiling with a channel for control of light.
Technical Specifications
- Manufacturer part number (MPN)
- 92186
- EAN / GTIN
- 4007529921867
- Sales unit
- pcs
- Nominal voltage
- 240 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Movement sensor
- Height
- 53 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 1 s
- Switch-off delay
- 1 s
- Built-in depth
- 53 mm
- Diameter
- 106 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 5 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 165 A
- Material
- Plastic
- Diameter reach on floor
- 10 m
- RAL-number (similar)
- 9010
- Control current
- 17 mA
- Scan angle
- 360 °
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.5 m
- Number of switching zones
- 3
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 50 mm
- Max. presence range
- 78 m²
- Max. switching power LED
- 10 W
- Sensor type
- Passive infrared
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 4007529921867
- SAP 1000515994
- Code 8631898
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Phase Sequence relay 230V (PPA02CM23)
Carlo Gavazzi
M-Bus for Modbus konverter (SIU-MBM-01-160)
Carlo Gavazzi
Carlo Gavazzi SMS20 Safety Relay, 2 NO Outputs, PLe/Cat.4, 24V AC/DC
Carlo Gavazzi
Level Relay 2 level Plug 24VAC/DC (CLP2FA1BM24)
Carlo Gavazzi
M12 Capacitive transmitter IO-Link M12 plug (CA12CAF04BPM1IO)
Carlo Gavazzi
SMH 4CH ing pulse or connector
SH2INDI424
Carlo Gavazzi

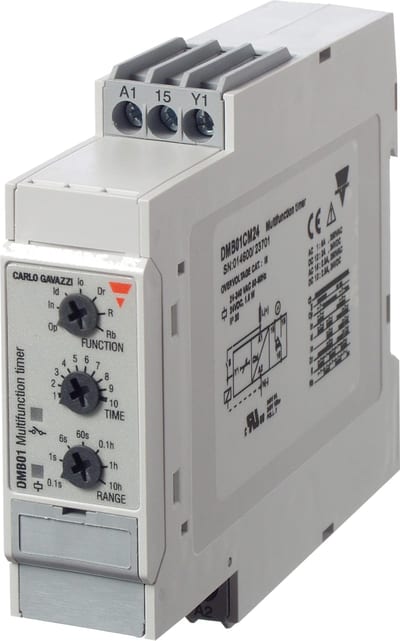

Time Relay Multifunction (DMB01CM24)
Carlo Gavazzi

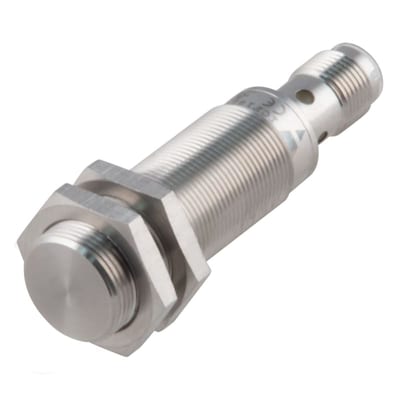

IND PROX SENS. ICF18 Plug LONG IO-LINK
