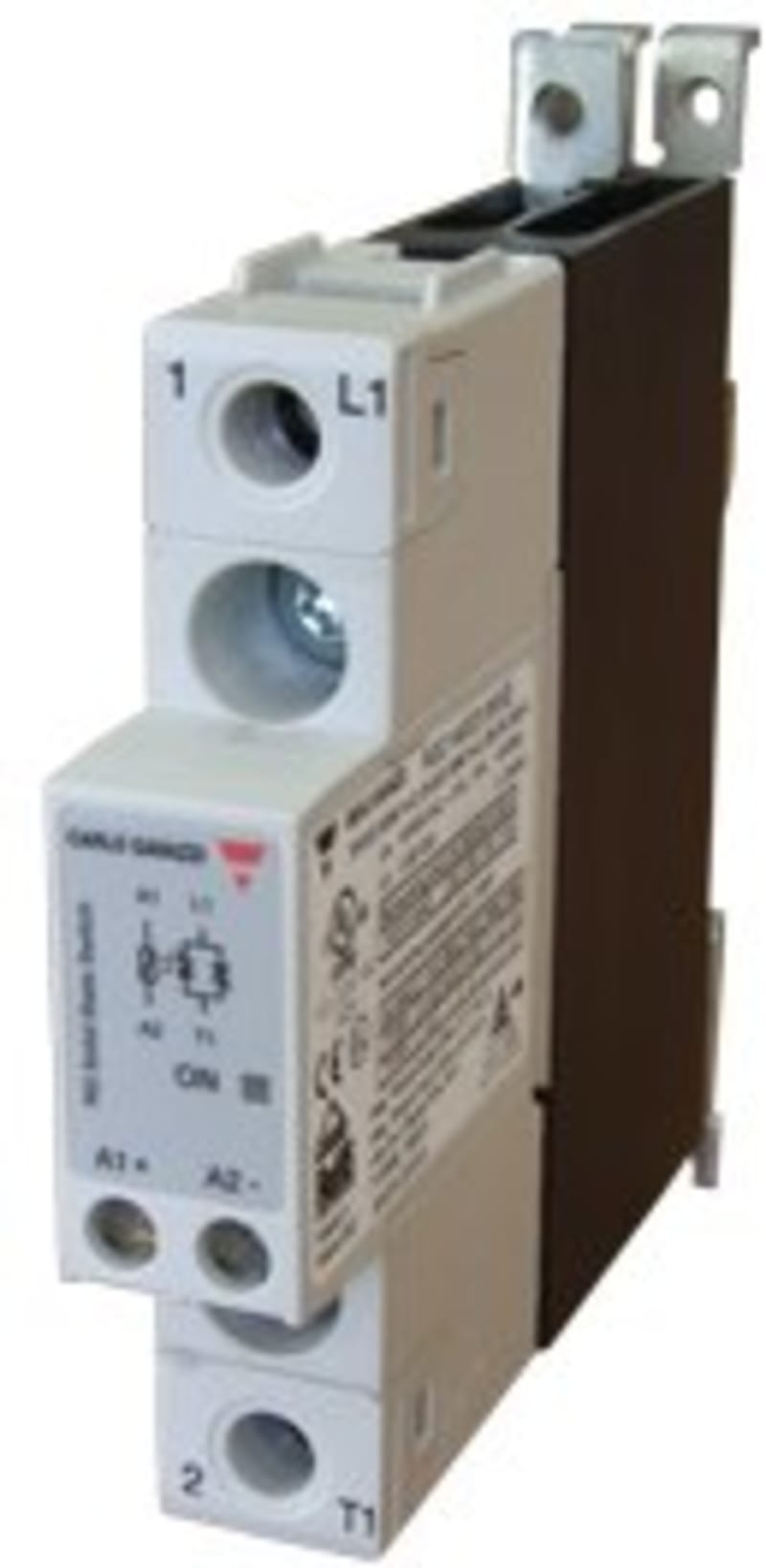

SSR 15A@40°C, 42-600VAC (RGC1A60D15KKE)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RGC1A60D15KKE Manufacturer description: 1-pole DIN-rail mount SSR, E-layout, Zero-cross switching, Operating voltage (Ue): 42 - 660 Vac (1200 Vp), Rated current (Ie): 20 Aac, Control voltage (Uc): 4 - 32 Vdc, Built-in overvoltage protection. RGC1A60D15KKE RG-Series DC control.
Technical Specifications
- Manufacturer part number (MPN)
- RGC1A60D15KKE
- EAN / GTIN
- 5350035421383
- Sales unit
- pcs
- Output switching mode
- Zero cross
- Number of poles
- 1
- Rated current AC-51
- 20 A
- Rated current AC-53a
- 5 A
- Operating voltage
- 42 V ... 660 V
- Control voltage AC
- 0 V ... 0 V
- Control voltage DC
- 4 V ... 32 V
- Power connection
- Screw with captive clamp
- E-number (NO)
- 4165189
- E-number (SE)
- 4029425
- Degree of protection (IP)
- IP20
- Width
- 17.8 mm
- Operating voltage AC 50 Hz
- 42–600 V
- Operating voltage AC 60 Hz
- 42–600 V
- Depth
- 98.5 mm
- Height
- 110 mm
- Complete with socket
- Yes
- With detachable clamps
- No
- With LED indication
- Yes
- Type of switch function
- Normally open contact (NO)
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-51
- 20 A
- Rated operation current Ie at AC-53a
- 5 A
- Number of phases
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5350035421383
- SAP 1000504956
- Code 8339754
Product Documentation
