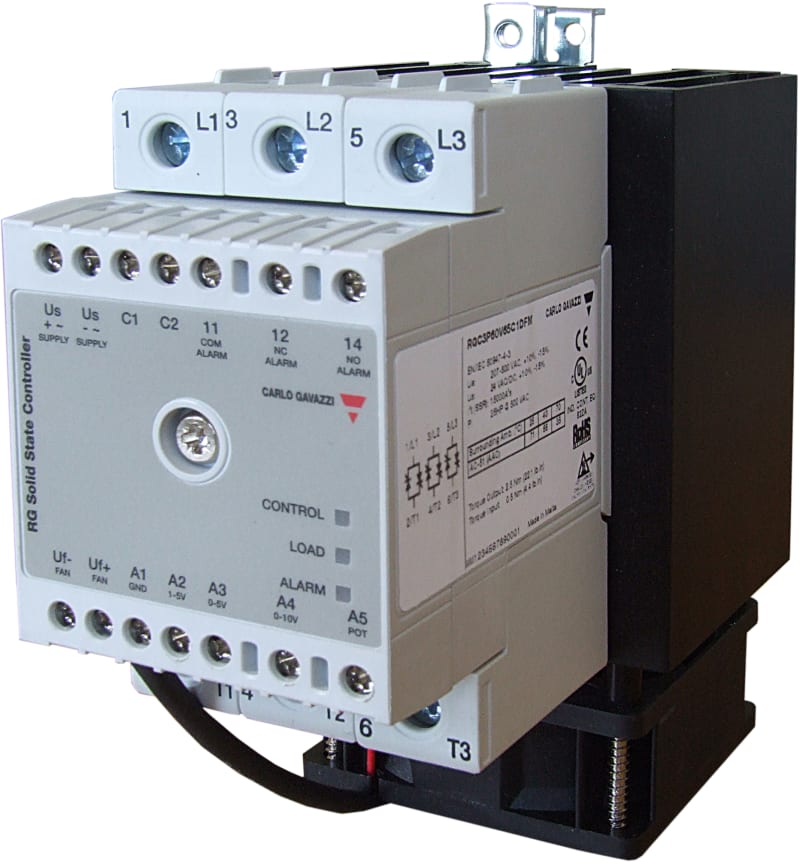

Carlo Gavazzi RGC3P60I65EDFP 3-Pole Solid-State Power Controller, 65 A, 180-660 V AC

Three-pole solid-state power controller with integral heatsink and fan, DIN-rail mounted, providing phase-angle proportional control of resistive and inductive AC loads. Rated 65 A per pole at operating voltages from 180 to 660 V AC (1200 Vp), accepts a 0-20, 4-20, or 12-20 mA analogue input, and requires a 24 V AC/DC auxiliary supply. Built-in overvoltage protection and LED status indication. Typical applications include control of three-phase heating elements in industrial ovens, extruders, and process heaters. Country of origin: Italy.

Manufacturer part number (MPN)

RGC3P60I65EDFP

EAN / GTIN

5350035426180

Sales unit

pcs

Output switching mode

Proportional

Number of poles

3

Rated current AC-51

66 A

Operating voltage

180 V ... 660 V

Analogue control signal

0 - 20mA, 4-20mA, 12-20mA

Power connection

Box clamp

E-number (NO)

4132205

E-number (SE)

4029590

Degree of protection (IP)

IP20

Width

72 mm

Depth

136.5 mm

Height

141 mm

Complete with socket

Yes

With detachable clamps

No

With LED indication

Yes

Model

Triac

Type of switch function

Normally open contact (NO)

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Voltage type for actuating

DC

Rated operation current Ie at AC-1

65 A

Rated operation current Ie at AC-51

66 A

Number of phases

3

Suitable for distribution board

Yes

Switching at zero-crossing

No

Country of origin

Italy

HS Code

8548.00
