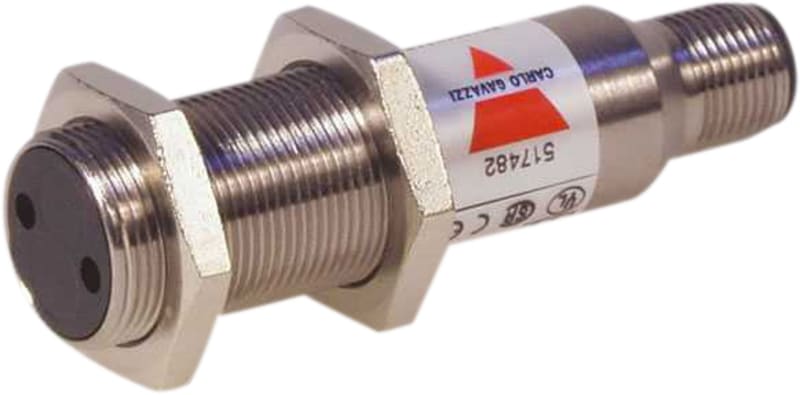

Photoelectric Sensor.SENDER M18 Plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ET1820-1 Manufacturer description: Through-beam Photoelectric Emitter, Range: 0-2000mm, Adjustable Sensitivity, Infrared Light 880nm, Plug connection, M18 housing. ET1820-1 Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- ET1820-1
- EAN / GTIN
- 5709870076577
- Sales unit
- pcs
- Output type
- Other
- Output function
- Other
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing Material
- Metal
- Type of light
- Infrared light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated Operational voltage UB at DC
- 10 V ... 40 V
- E-number (NO)
- 4351341
- Scope of delivery of the one-way system
- Transmitter
- Rated switching distance
- 20000 mm
- Max. switching distance
- 20000 mm
- Max. output current
- 200 mA
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 0 mm
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- DC
- Laser protection class
- None
- Wavelength of the sensor
- 880 nm
- Light dot
- 490000 mm²
- AWG-number
- 23
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870076577
- SAP 1200454353
- Code 82529156
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Level Probe Conductive 4 Electrodes (VN4)
Carlo Gavazzi
Smart Dupline SBQP360L24MFO
Carlo Gavazzi
Kompabilitetskit Dupline (U-Compkit)
U-COMPKIT
Carlo Gavazzi
Power supply 60W 24VDC 2.5A (SPDL24601)
Carlo Gavazzi
LED Enclosure Light with Spring Terminals, Screw Mount and PIR Sensor, 24–240 V AC/DC
2400264
Carlo Gavazzi
3 pole 16A with auxiliary contact (SDS316AUXM25)
Carlo Gavazzi
Level Probe Conductive 2 Electrodes (VNY2)
Carlo Gavazzi

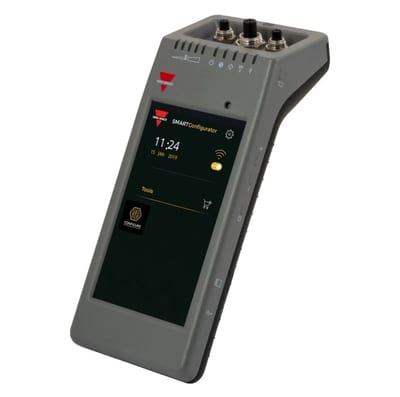

IO link programmerer
SCTL55
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ET1820-1?
- ET1820-1 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ET1820-1.
- What is the HS code for ET1820-1?
- The customs tariff (HS) code for ET1820-1 is 9030.90.
- Who manufactures ET1820-1?
- ET1820-1 is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ET1820-1?
- Yes — the ET1820-1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ET1820-1?
- The minimum order quantity is 1.
- Is ET1820-1 available?
- Yes — ET1820-1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
