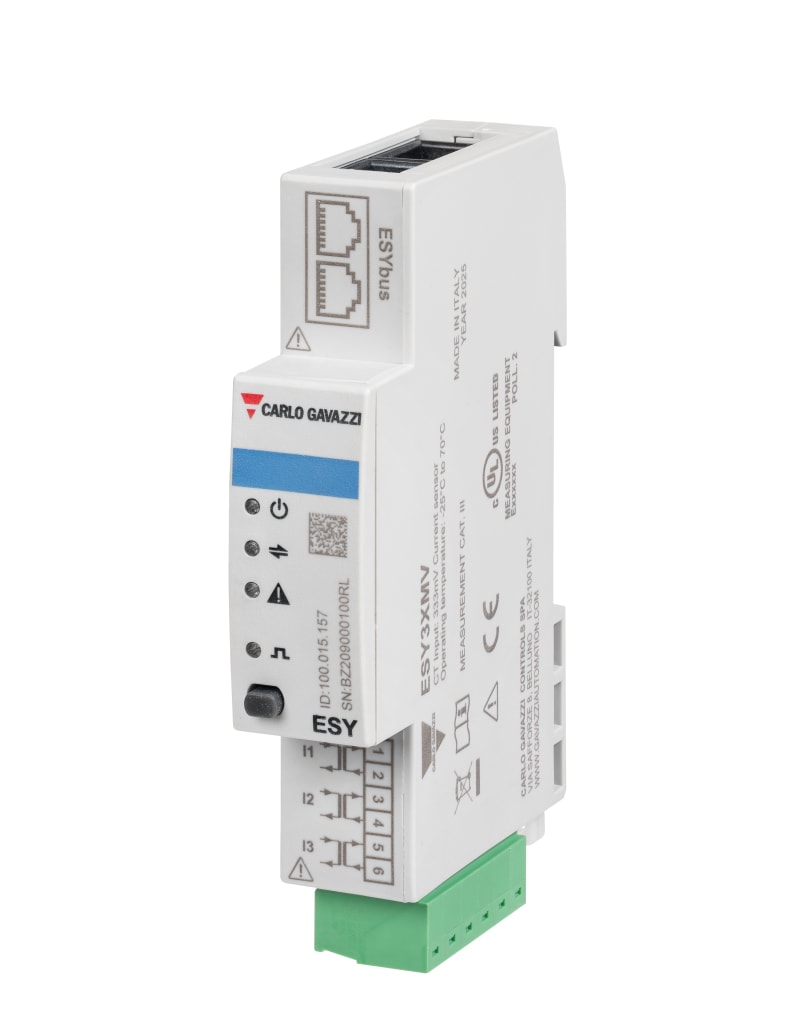

Carlo Gavazzi EMS10 Three-Phase Current Measurement Module for 333 mV CTs
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ESY3XMV is a three-phase current measurement module for the EMS10 energy monitoring system, designed to work with 333 mV output current transformers. Installed on a DIN-rail adaptor at 18 mm width, it feeds phase current data via RS485 Modbus RTU for measurement of consumption and generation on three- and four-wire loads. It draws its own supply and supports both effective and reactive power measurement with two-tariff operation.
Technical Specifications
- Manufacturer part number (MPN)
- ESY3XMV
- EAN / GTIN
- 8054155009007
- Sales unit
- pcs
- Frequency
- 50Hz; 60Hz
- Current inputs
- 333 mV current sensors
- Energy metering
- Consumption and generation
- Static output
- Pulse
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America)
- E-number (NO)
- 8200759
- E-number (SE)
- 0981091
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 18 mm
- Model
- Measurement transformer
- Height
- 90 mm
- Depth
- 44 mm
- Suitable for
- Purchase/supply
- Width in number of modular spacings
- 1
- Type of meter
- Electronic
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- No
- Calibrated
- Yes
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8054155009007
- SAP 1200966336
- Code 84275710
Product Documentation
