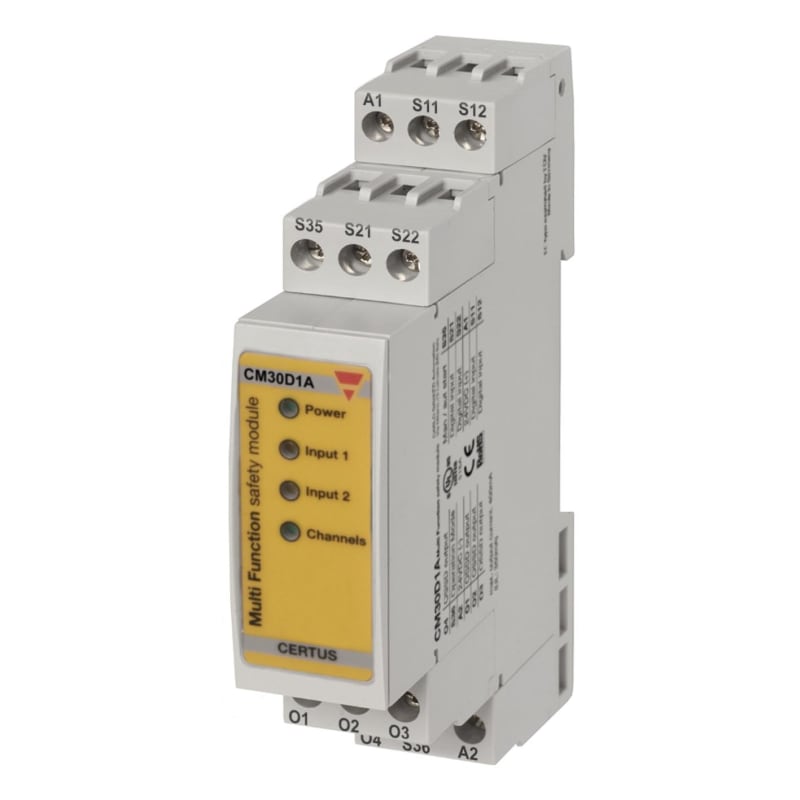

Safety Relay CM30D1A
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CM30D1A Manufacturer description: Multifunction safety module, PL e, SIL3, 3x OSSD safety instantaneous outputs, 1x OSSD aux output, 24Vdc power supply, 17,5mm DIN rail mount housing, universal safety input for E-Stop, E-gate, Type2 and Type4 ESPE, magnetic switch, safety mat. SAFETY RELAY 3 NO + 1NC AUX.
Technical Specifications
- Manufacturer part number (MPN)
- CM30D1A
- EAN / GTIN
- 8033130192125
- Sales unit
- pcs
- Safety inputs
- 2-channel
- Safety OSSD outputs
- 3
- EN ISO 13849-1 PL
- Level e
- IEC 61508 SIL
- SIL 3
- Operating voltage
- 19.2 V ... 28.8 V
- Housing width
- 17.5 mm
- E-number (NO)
- 4100213
- Model
- Basic device
- Type of electric connection
- Screw connection
- Evaluation inputs
- One- and two-channel
- Number of outputs, safety related, undelayed, with contact
- 3
- Type of safety according to IEC 61496-1
- 1
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- Width
- 18 mm
- Height
- 90 mm
- Depth
- 63 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8033130192125
- SAP 1200454284
- Code 82529102
Product Documentation
