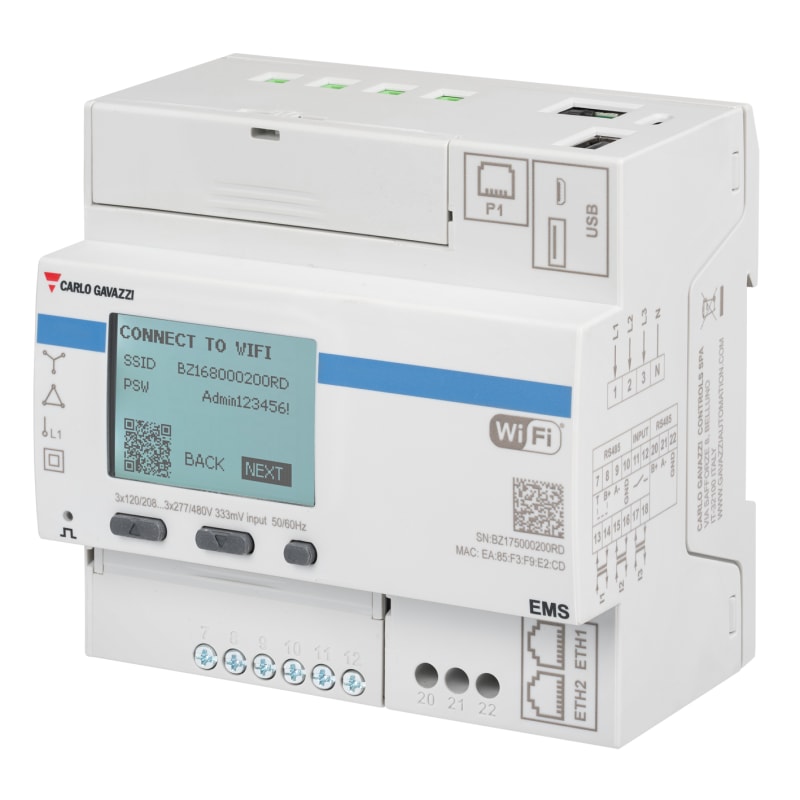

Energilogger with webserver 3-Phase (5A) (EMS10AV5O1X)

Carlo Gavazzi EMS10AV5O1X Manufacturer description: Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, current transformer 5(6) A, self power supply, with RS485 Modbus master port, Digital output, Digital input. Energy meter (5A) with logging, web-server and Gateway. Can connects up to 23 pcs 3-phase mustlinger.

Manufacturer part number (MPN)

EMS10AV5O1X

EAN / GTIN

8054155008949

Sales unit

pcs

Frequency

50Hz; 60Hz

Current inputs

5 A current transformers

Energy metering

Consumption and generation

Static output

Alarm; Remote control

Communication port and protocol

Ethernet (Modbus TCP/IP); BACnet IP

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America)

E-number (NO)

8200756

E-number (SE)

0981055

Mounting method

DRA (DIN-rail adaptor)

Width

90 mm

Model

Measurement transformer

Height

90 mm

Depth

44 mm

Suitable for

Purchase/supply

Type of indication

Digital

Power consumption

10 W

Max. current (Imax)

6 A

Width in number of modular spacings

5

Number of positions total (counter)

11

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

Modbus

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

Internal/external

Escapement mechanism

Yes

Calibrated

Yes

Approval

Domestic

Pulse output

Optical

Pulse type

D0

Accuracy class

B

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

Yes

Nominal voltage (Un) N-L

120–277 V

Nominal voltage (Un) L-L

208–480 V

Nominal current (In)

5 A

Country of origin

Italy

HS Code

9028.30
