Ball Valve 3-Piece SS316 1/2" BSP
Swagelok · Valves · Ball Valves

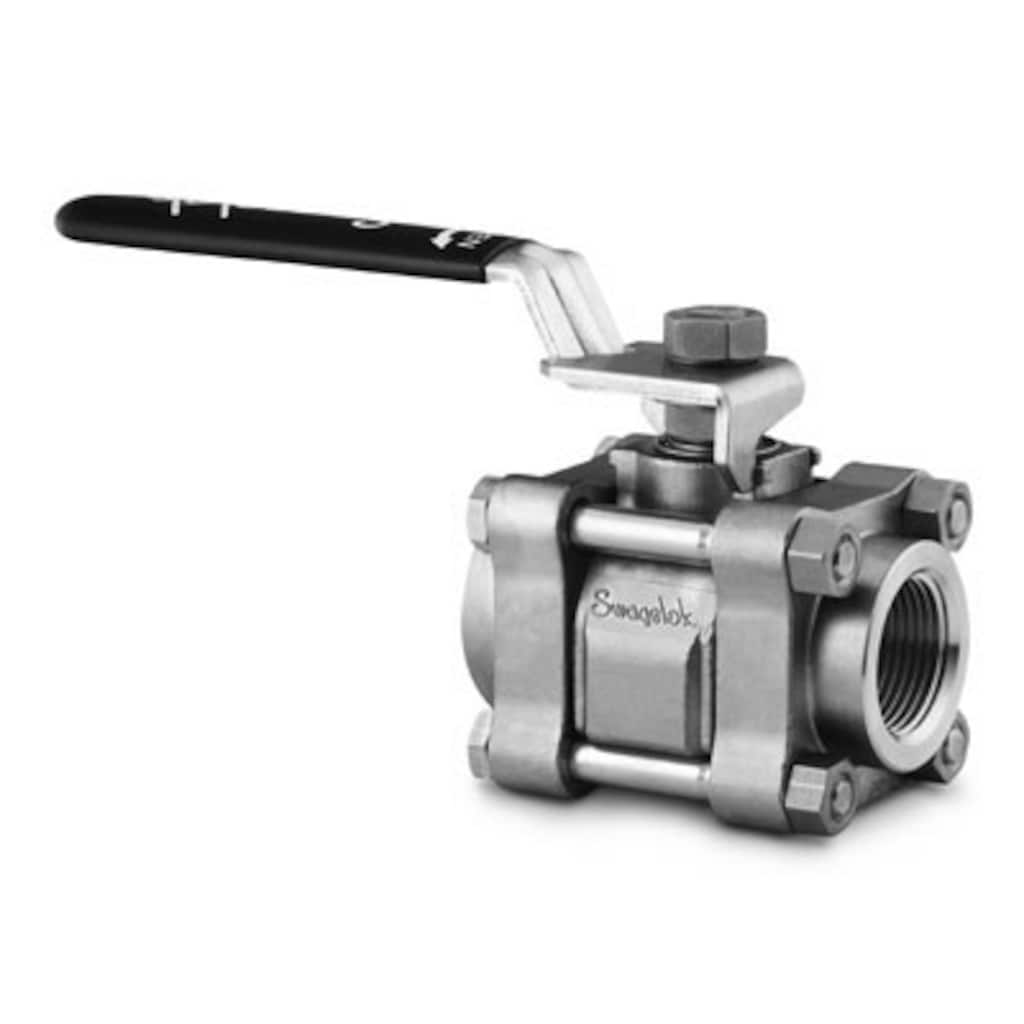

Swagelok SS-63TF8RT, catalog identifier for the specific configuration. 3-piece full bore ball valve in SS316 stainless steel. 1/2" BSP female thread both ends. PTFE seats and seals. Full bore for unrestricted flow. Deployed in process, utility and marine piping loops for on-off shutoff, control, safety relief or diversion service. Manufacturer: Swagelok. Manufacturer part number: SS-63TF8RT. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- SS-63TF8RT
- HS code
- 8481.80
- Material
- SS316 Body & Ball, PTFE Seats
- Pressure rating
- 1000 WOG (69 bar)
- Temperature range
- -20°C to +180°C
- Standard size
- 1/2" BSP (DN15)
Compatibility
Swagelok 60 Series 3-piece ball valve, 316 SS body, 1/2 in. ISO tapered (BSPT / Rc) female, reinforced PTFE seats, 2200 psig @ 100 degF (151 bar @ 37 degC), -10 to 302 degF service range.
Standards
- ISO 9001
- NACE MR0175/ISO
- ASME B16.34
- API 607
- ISO tapered
- ISO 5208
- EN 12266-1
Approvals
