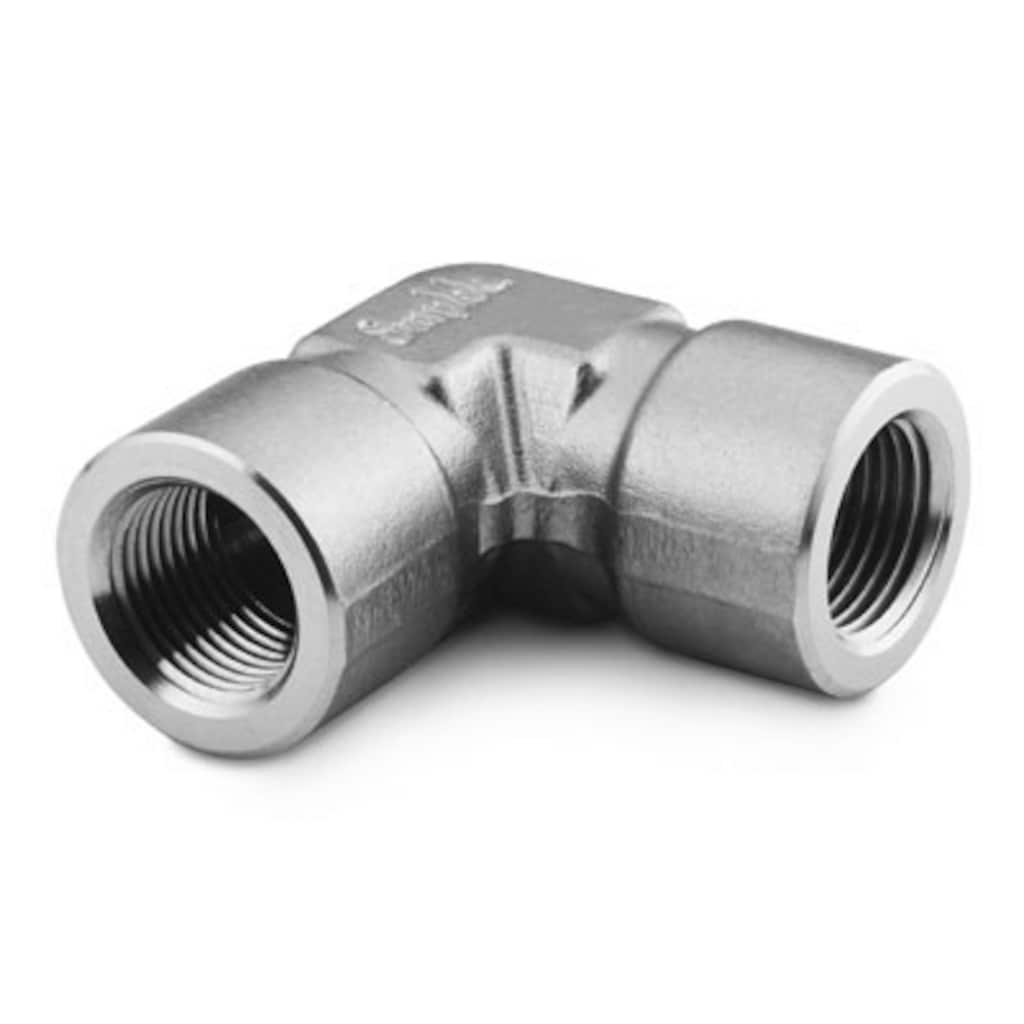

SS316 90A Elbow BSP Female 1/4"
Swagelok · Pipes, Fittings & Flanges · 90A Elbows
SS316 cast 90-degree elbow with female BSP threads on both ends. 1/4" size for low-pressure piping systems.
Specifications
- Part number
- SS-4-E-RT
- HS code
- 7307.19
- Material
- AISI 316 Stainless Steel
- Pressure rating
- 150 lbs (PN10)
- Temperature range
- -20°C to +200°C
- Standard
- ISO 4144
- Standard size
- 1/4" BSP
- Thread standard
- BSP (ISO 228-1)
Compatibility
Swagelok 316 SS pipe fitting, female 90 degree elbow, 1/4 in. female ISO tapered (BSPT) thread both ends.
Standards
- ISO 9001
- NACE MR0175/ISO
- ASME B31.3
- ISO 228-1
- ISO 4144
- ANSI B16.11
- ISO tapered
