DIN 2353 Compression Fitting Straight 10mm Tube
Swagelok · Pipes, Fittings & Flanges · Compression Fittings
Swagelok SS-10M0-6, catalog identifier for the specific configuration. DIN 2353 straight compression fitting for 10mm OD steel or stainless tube. Zinc plated carbon steel body with cutting ring. Supplied for general industrial and marine service under the applicable OEM specification. Manufacturer: Swagelok. Manufacturer part number: SS-10M0-6. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- SS-10M0-6
- HS code
- 7307.19
- Material
- Carbon Steel, Zinc Plated
- Pressure rating
- 400 bar
- Temperature range
- -20C to +100C
- Standard
- DIN 2353 / ISO 8434-1
- Standard size
- 10mm
Compatibility

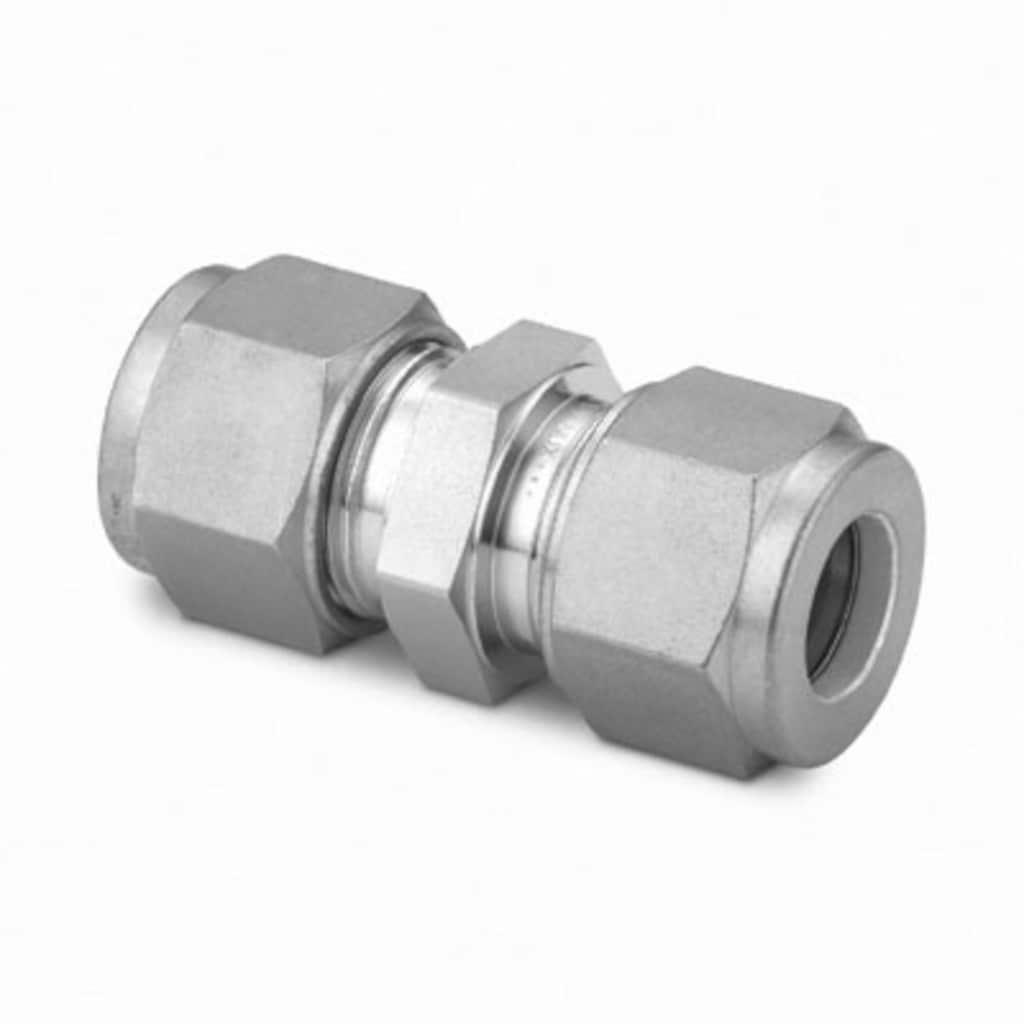

Swagelok 316 SS tube fitting union, 10 mm OD tube both ends. Gaugeable two-ferrule design (not identical to DIN 2353 single-ferrule but mechanically interchangeable on 10 mm OD tube systems).
Standards
- ISO 9001
- NACE MR0175/ISO
- ASME B31.3
- DIN 2353
- ISO 8434-1
Approvals
