Product Description

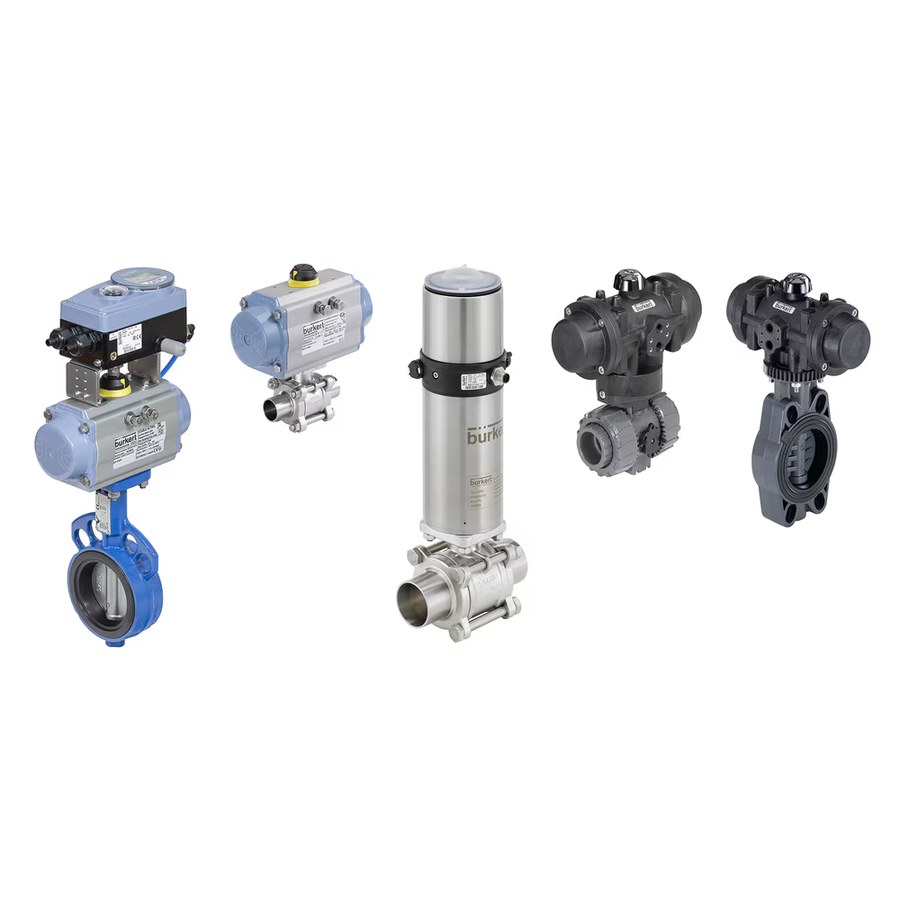

Type 8805 consists of a quarter-turn valve (ball or butterfly valve) and a pneumatic rotary actuator. The rotary actuator is available as single or double-acting actuator. Type 8805 can be complemented by a positioner (Type 8791, 8792, 8793, 8691, 8692, 8693, 8694), a pilot valve (Type 6519) or several kinds of position feedbacks (Type 1061).
Technical Specifications
- Seal
- Ball seal: PTFE, stem seal: FKM
- Body
- Stainless steel 1.4408/316
- Actuator
- Aluminium
- Ball
- Stainless steel 1.4401/316
- Stem
- Stainless steel 1.4401/316
- Pilot pressure
- Max. 6…8 bar
- Nominal diameter
- 2/2-way ball valve: DN 10…100
- Medium temperature
- Depending on the ball valve and the medium pressure, see “6.1. Pressure temperature diagram” on page 11
- Port connection
- 2/2-way ball valve: Rp ¼"…Rp 4" Whitworth thread according to DIN EN 10226 - 1 (old DIN 2999), welded
- Installation position
- Do not install the actuator upside down, maximum installation angle: 90°.
- Ambient temperature
- - 10 °C…+ 80 °C, see “6.1. Pressure temperature diagram” on page 11
- Nominal
- Control KV value Nominal pressure Weight
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 8805
- Buerkert 8805
- Bürkert 8805
- Type 8805
- Burkert Type 8805
