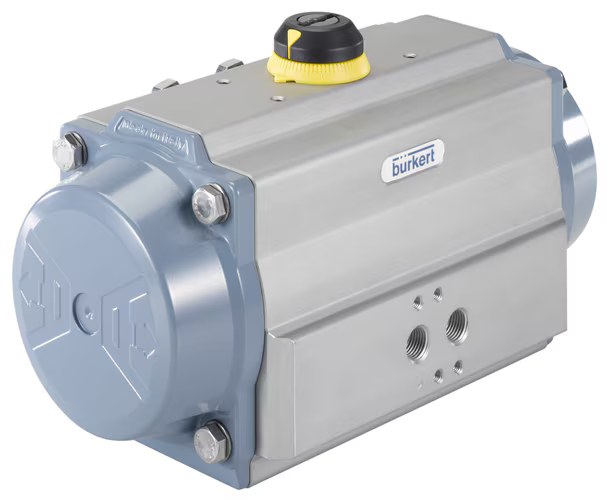

Bürkert Pneumatic Rotary Actuator Type 2051

The actuator rotary actuator Type 2051 includes single-acting and double-acting pneumatic linear piston actuators with a universal mechanical interface in accordance with ISO 5211. The actuator stem is rotated through 90º by the pressure force of the pilot air or the force of the reset fields. The rotary movement can in turn be used to actuate corresponding proportional valves such as ball valves or butterfly valves. The rotary actuator can also be combined with the positioners from the 8791/8792/8793 series. The actuator can be equipped with the end position feedback boxes from the 1061 series for pure position monitoring.

Actuator

Aluminium alloy

Seal

Special NBR, FKM (on request)

Piston

Aluminium

Rotation angle

90º. adjustable to - 5º…15º and 75º…95º

Adjustable angle

20º per end position

Pilot pressure

Single-acting actuator: 3…8 bar

Pilot air ports

Flange interface according to NAMUR VDE/VDI 3845

Feedback signal

According to NAMUR VDE/VDI 3845

Armature-side interface

According to ISO 5211

Ambient temperature

- 40 ºC…+ 80 ºC (FKM: - 15 ºC…+ 150 ºC)

HS Code

8481.80
