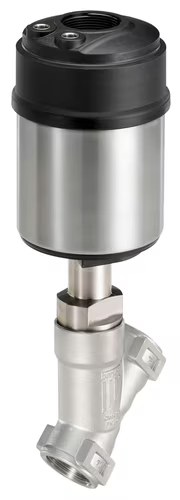

Bürkert Pneumatically Operated 2-Way Angle Seat Control Valve ELEMENT

In line with Bürkert’s philosophy for modular valves and sensors the construction of Type 2300 angle-seat valve fulfils tough criteria for process environments. Unrivalled cycle life and sealing integrity is guaranteed by the proven self adjusting packing gland. The parabolic trim results in a flow characteristic approximately 35% larger than conventional control valves. It is available in either stainless steel on stainless steel or with a durable PTFE seal for tight shut-off. The design enables the easy integration of automation modules whether they are digital electropneumatic positioner or process controller. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67, NEMA Type 4X protection class and superior chemical resistance. This system has been engineered for reliable accurate control in applications where high flow rate is an advantage.

Design

Angle seat control valve

Nominal diameter (port connection)

DN 10…DN 65, NPS ⅜…NPS 2½

Safety setting in case of power failure

Normally closed (control function A), normally open (control function B)

Flow direction

Flow to open (below seat)

Operating pressure

0 bar(g)…25 bar(g), vaccum variants…- 0.9 bar(g) (option)

Nominal pressure

PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)

Pilot pressure

5.6 bar(g)…7 bar(g)

Seat leakage

DIN EN 60534 - 4:2006

Leakage class III and IV

Stainless steel

Leakage class VI

PTFE and PEEK

KV value

5 m³/h…90 m³/h

Operating characteristic

Modified equal percentage

Medium temperature

- 40 °C…+ 230 °C

Viscosity

Max. 600 mm²/s

Threaded connection

G (DIN ISO 228 - 1)

HS Code

8481.80
