Product Description
These multi-way diaphragm valve blocks enable an almost infinite number of valve and process combinations. Multi-way valve systems achieve an extremely compact, space-saving design and represent an alternative to previous welded combinations, for example. Configurations can also be constructed that cannot be produced as welded combinations. The valve body is made of solid material and is available in all industry-standard materials and surface qualities. By using multi-way diaphragm valve blocks, the number of weld seams is reduced, the effort and documentation within the validation is minimised and ultimately compliance with the 2D rule or 3D rule is possible. Designs with the smallest dead spaces and the desired optimised draining are possible. All multi-way valve systems can be combined with the proven Bürkert actuator and automation concepts.
Technical Specifications
- Additional information for weld-on
- Standard clamps and DIN 11864 connections according to VI specification
- CLASSIC (Type 2031)
- PPS, PA, bonnet in stainless steel 1.4308 / 1.4404
- Stainless steel/INOX (Type 2063)
- Stainless steel 1.4404, bonnet in stainless steel 1.4308
- Robolux (Type 2036)
- Stainless steel 1.4308 (CF8)
- Manual (Type 2933)
- Actuator (diaphragm base / hand wheel)
- Manual (Types 2973)
- Actuator (diaphragm base / hand wheel)
- Manual (Type 3233)
- Actuator (diaphragm base / hand wheel)
- Diaphragm size
- 8…100
- Block body (VH/VI)
- Internally electrically polished: Ra ≤ 0.38 μm (NO17) (ASME BPE SF4 / DIN HE4)
- Pilot air port
- Push-in connector Ø 6 mm/4 mm or ¼", thread G ⅛"/G ¼"
- EPDM (AD)
- - 10…+ 143 °C (steam sterilisation + 150 °C for 60 min)
- PTFE/EPDM (EA)
- - 10…+ 130 °C (steam sterilisation + 140 °C for 60 min)
- Advanced PTFE/EPDM (EU)
- - 5…+ 143 °C (steam sterilisation + 150 °C for 60 min)
- Advanced PTFE/EPDM laminated (EK)
- + 5…+ 90 °C (not recommended for steam)
- Nominal diameter
- DN 06…DN 100 (⅛"…4")
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 2034
- Buerkert 2034
- Bürkert 2034
- Type 2034
- Burkert Type 2034
Product Documentation
More from Bürkert
Bürkert
Bürkert Robolux Multiway Multiport Diaphragm Valve, Pneumatically Operated
Type 2035
Bürkert
Bürkert Robolux Multiway Diaphragm Valve, Pneumatically Operated
Type 2036
Bürkert
Bürkert Pneumatic Rotary Actuator Type 2051
Bürkert
Bürkert Pneumatically Operated 2/2-WAY Angle Seat Valve with Stainless Steel Actuator
Type 2060
Bürkert

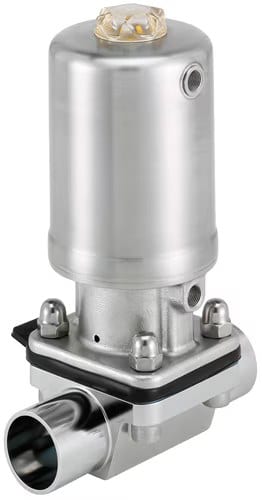

Bürkert 2/2-WAY Diaphragm Valve with Pneumatic Actuator in Stainless Steel (Type INOX)
