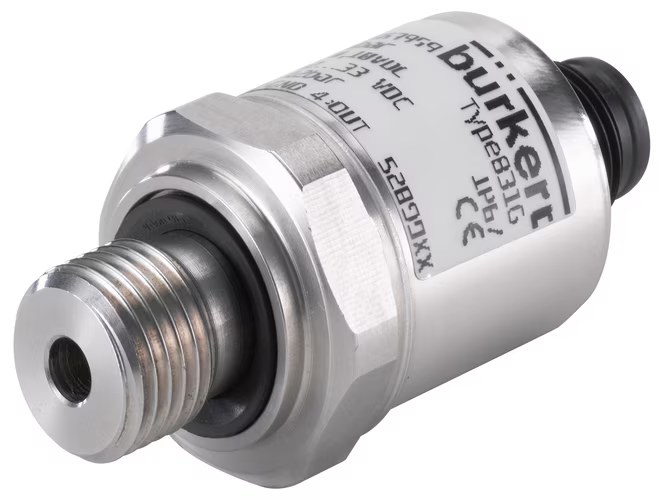

Bürkert Pressure Measuring Device

The compact Type 8316 pressure measuring device meets the highest requirements with regard to mechanical loading, EMC characteristics and operational reliability. It is particularly suitable for demanding industrial applications. For aggressive media where stainless steel is not resistant, process connections in PVDF are available.

Housing

Stainless steel 1.4404 (316L)

Process connection

Stainless steel 1.4404 (316L)

Measuring element

Variant Pmax. ≤ 0.6 bar: ceramic Al2O3 (99.6 %)

Seal

Variant Pmax. ≤ 0.6 bar: FKM (others on request)

Weight

Variant Pmax. ≤ 0.6 bar: approx. 120 g

Measurement technology

Variant Pmax. ≤ 0.6 bar: ceramic

Measuring range

Variant Pmax. ≤ 0.6 bar 0…0.05, 0.1 or 0.25 (0…0.4 or 0.6 bar on request)

Temperature coefficient

Variant Pmax. ≤ 0.6 bar: ± 0.07 % of full scale /10 K (the zero point and range at - 15…+ 85 °C

Measuring range resolution

< 0.1 % of full scale

Measurement deviation

Sum of linearity, hysteresis and reproducibility, balancing accuracy of zero point and full scale

Load cycle

< 100 Hz

Overload / bursting pressure

Variant Pmax. ≤ 0.6 bar: 2 bar

Operating voltage (U)

Variant Pmax. ≤ 0.6 bar : 10…33 V DC, unregulated (variant with 4…20 mA output)

Protection class

Class III

Current consumption

Max. 23 mA

HS Code

9032.89
