Product Description

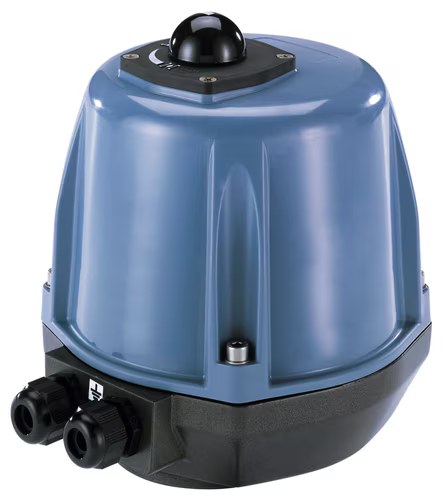

The electrical rotary actuator Type 3005 is a compact and powerful actuator system which provides a long service life. Materials and components have been chosen for maintenance-free operation and ensure low thermal loading on the actuator. The modular design offers many options such as extra limit switches or potentiometers to be added to the basic unit.
Technical Specifications
- Cover
- Polycarbonate (Lexan 943 A)
- Body
- Aluminium silicon alloy (AlSi12)
- Weight
- 6 kg
- Torque
- 100, 130, 150 Nm
- Rotation angle
- 90º (adjustable)
- Rotation time (90°)
- 19…32 s
- Synchronous motor
- 24 V AC / 115 V AC / 230 V AC / 400 V
- DC motor
- 24 V DC
- Limit switches
- 4 adjustable (2 for the motor and 2 for the position feedback), max. 250 V AC
- Power consumption
- 27…45 W
- Duty cycle
- According to IEC60034 - 1.8
- Electrical connection
- Cable glands according to ISO M20 × 1.5
- Armature-side interface
- Double square 22 mm
- Degree of protection
- IP67
- Installation position
- Do not install the actuator upside down, maximum installation angle: 90°
Standards & Compliance
- HS Code
- 8481.80
