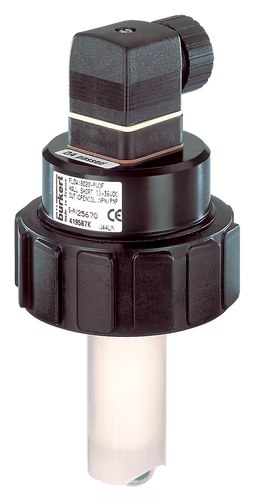

Bürkert Insertion Flowmeter with Paddle Wheel for Continuous Flow Measurement
Pricing
Request a quote
We reply within 24 hours
Product Description
The flowmeter with paddle wheel is particularly suited to use with neutral or mildly aggressive, particle-free liquids. Bürkert’s proprietary fitting system permits simple installation of the devices into pipelines from DN 20 to DN 400. The flowmeter generates a pulse frequency signal proportional to the flow velocity. The signal can be processed by a Bürkert Transmitter/Controller.
Technical Specifications
- Screw
- Stainless steel
- Female cable plug/male fixed
- Body, contact holder and cable gland in PA
- Sensor armature
- PVDF
- Axis and bearing
- Ceramics (Al2O3)
- Paddle wheel
- PVDF
- Seal
- FKM (EPDM as option)
- Compatibility
- Any pipe from DN 20…DN 400 which is fitted with Bürkert Insertion fitting Type S020.
- Pipe diameter
- DN 20 …DN 400
- Measuring principle
- Paddle wheel
- Measuring range
- Flow rate: 0.5…75000 l/min (0.13…19813 gpm)
- Measurement deviation
- Teach-in: ± 1 % of the measured value at teach-in flow rate value
- Linearity
- ± 0.5 % of full scale
- Repeatability
- ± 0.4 % of the measured value
- Operating voltage
- Hall variant: 12…36 V DC, filtered and regulated
- Power source (not supplied)
- Limited power source according to UL/EN 62368‑1 standards or limited energy circuit according to UL/
Standards & Compliance
- HS Code
- 9026.10
Cross References
- Burkert 8020
- Buerkert 8020
- Bürkert 8020
- Type 8020
- Burkert Type 8020
