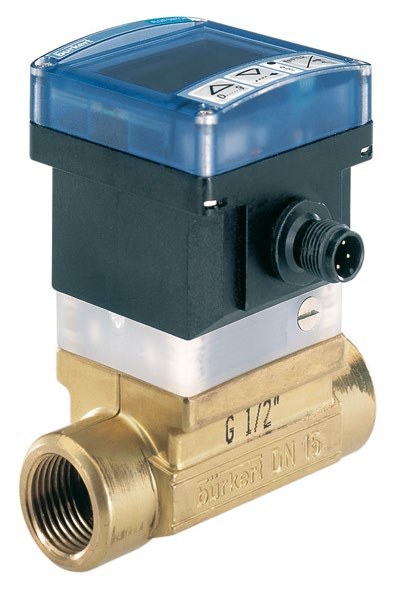

Bürkert Inline Paddle Wheel Flowmeter, Optical Signal Detection
Pricing
Request a quote
We reply within 24 hours
Product Description
This intelligent controller with an extra-largedisplay is specially designed to switch a valve and to establish a monitoring system or an On/Off control loop. Switching points can be programmed with the3-key keypad under the display and the connection to the process in the piping is done with standard fittings.The version with a frequency output makes it possible to transmit the paddle-wheel rotation speed (2 pulses/paddle-wheel rotation) directly to a PLC.
Technical Specifications
- Type 8039 can be combined with...
- - Insensitive to ferromagnetic particles in the fluid
- Type 8801-YE
- Type 8611 Type 8644-P AirLINE Type 6014 PLC
- Switching points can be programmed with the
- Front panel folio Polyester
- The version with a frequency output makes it
- Electrical connection Cable plug: EN 175301-803 (provided)
- PLC.
- Connection cable 0.14 up to 0.5 mm2 cross-section; max. 100 m length
- Operating voltage (V+)
- 12 - 30 V DC, filtered and regulated
- Current consumption
- ≤ 80 mA (without load)
- Relay (configurable)
- 3 A/250 V AC or 3 A/30 V DC
- Ambient temperature
- 0 to + 60 °C (operating and storage)
- Relative humidity
- ≤ 80 %, without condensation
- Protection class
- IP65 with connector plugged-in and tightened only be used under following conditions (depend on max.
- Low voltage
- EN 61010-1 Fluid group 1, §1.3.a DN ≤ 25 only
- Pressure
- Complying with article 3 of §3 from 97/23/CE directive.* Fluid group 2, §1.3.a PN*DN ≤ 1000
- Vibration
- EN 60068-2-6 Fluid group 1, §1.3.b PN*DN ≤ 2000
- Shock
- EN 60068-2-27 Fluid group 2, §1.3.b DN ≤ 200
Standards & Compliance
- HS Code
- 9026.10
Cross References
- Burkert 8039
- Buerkert 8039
- Bürkert 8039
- Type 8039
- Burkert Type 8039
Product Documentation
More from Bürkert
Bürkert
Bürkert Electromagnetic Insertion Flowmeter
Type 8045
Bürkert
Bürkert PH or Oxidation-reduction Potential (ORP) Transmitter, ELEMENT Design
Type 8202
Bürkert
Bürkert PH- and ORP-probes
Type 8203
Bürkert
Bürkert Inductive Conductivity Meter, ELEMENT Design
Type 8228
Bürkert
Bürkert Modular Analysis Transmitter for PH, ORP, Conductivity Measurement
Type 8285
Bürkert
Bürkert Pressure Transmitter for General Applications, 0...25 Bar
Type 8323
Bürkert
Bürkert Pressure Transmitter for General Applications, 0…25 Bar
Type 8325
Bürkert
Bürkert ECONTROL – Universal Controller
Type 8611
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy Type 8039?
- Type 8039 can be ordered from cballast.com as a Bürkert catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Bürkert product?
- The manufacturer part number is Type 8039.
- What is the HS code for Type 8039?
- The customs tariff (HS) code for Type 8039 is 9026.10.
- Who manufactures Type 8039?
- Type 8039 is a Bürkert product in the Sensors & Instrumentation range.
- Is a datasheet available for Type 8039?
- Yes — the Type 8039 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for Type 8039?
- The minimum order quantity is 1.
- Is Type 8039 available?
- Yes — Type 8039 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
