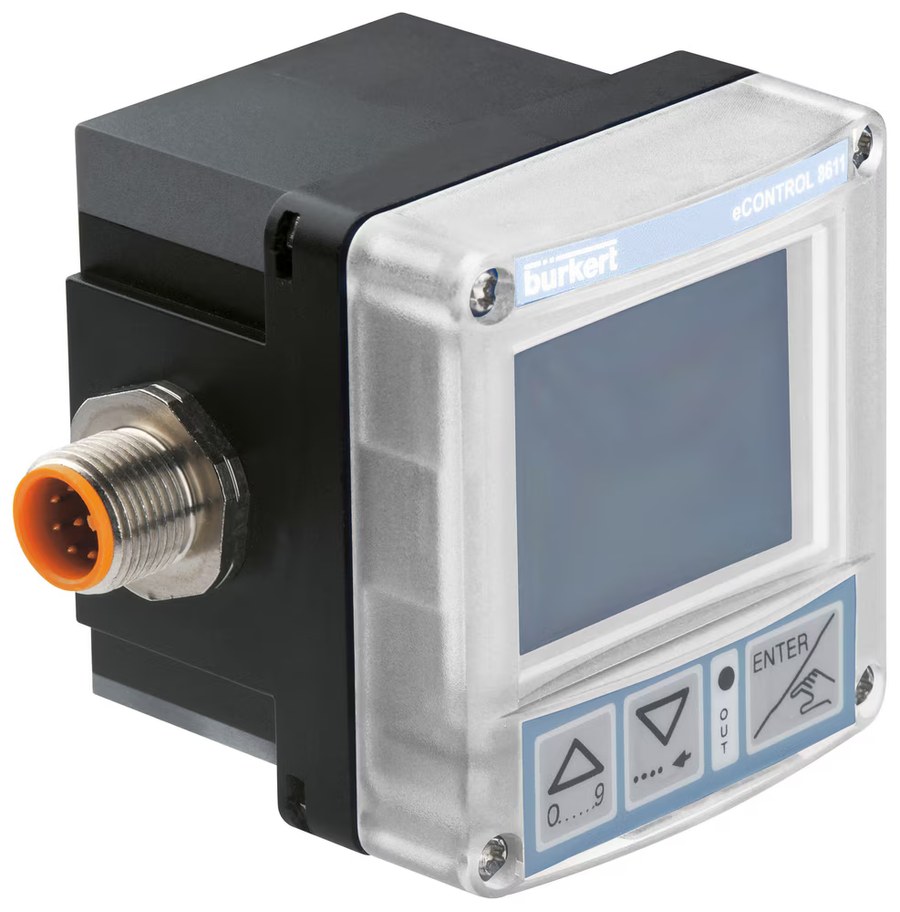

Bürkert ECONTROL – Universal Controller

Universal controller Type 8611 is ideally suited for the construction of compact control systems thanks to its compactness. It is compatible and has been tested with all Bürkert proportional valves and sensors, and can be used in combination with all non-Bürkert control valves with a standard signal (4-20 mA/0-10 V/PWM output). The process controller with PI behaviour comes with a variety of auxiliary functions. The process actual value can be connected to one of the three analog inputs of the universal controller as a standard signal (4–20 mA / 0–10 V), a frequency signal, or as a signal from a Pt100 resistance temperature sensor. The process setpoint can be specified via a current or voltage standard signal or via the keyboard. Specifically for temperature control tasks, there is the option to create a cascade structure with underlying flow control. A wide range of control tasks in fluid technology can be implemented for both liquid and gaseous media by enabling the control of proportional valves and process valves.

Housing, cover

PC (polycarbonate), + 20 % glass fibre

Screw

Stainless steel

Wall-mounting holder

PVC

Display

Dual-line 8-digit LCD with backlight

Operating voltage

24 V DC ± 10 %, filtered and regulated

Power consumption

Approximately 2 W (without valve, without sensor input)

Power supply cable

0.5 mm2 maximum cross section, maximum 100 m, shielded

Electrical connections

Multi-pin plug: 8-pin M12 plug, 4-pin M8 plug, 3-pin M8, terminal block

Controller mode

PI control, 2-point and 3-point, cascaded up to 2 binary outputs with windows and hysteresis

Set-point value

Sourcing mode

Sensor

Sourcing mode

Pt100 (2-wire)

Measuring range: 0…+ 200 °C

Binary input

Input impedance: 10 kΩ

PWM or PTM signal

Resolution maximum: 16 bit (depending on frequency)

Ambient temperature

0…+ 70 °C (operating and storage)

HS Code

9032.89
