Bürkert Inline Flowmeter with Paddle Wheel, ELEMENT Design

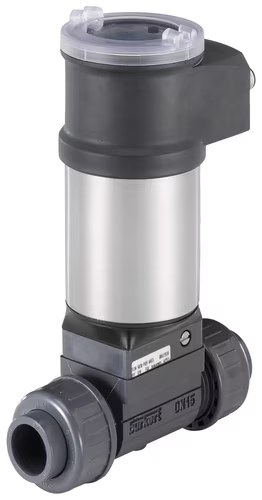

Bürkert Type 8036 Device Type 8036 with paddle wheel is designed especially for flow measurement of particle-free liquids in a variety of applications such as water or wastewater monitoring, chemical processing, and more. The device consists of a compact Inline sensor-fitting with paddle wheel (Type S030) and a transmitter (Type SE36). Assembly is quick and simple thanks to a mounting/bayonet catch system. Bürkert’s “Inline Quarter-Turn” technology guarantees leak-free operation. Bürkert’s proprietary sensor-fitting system ensures simple installation of the devices into all pipelines from DN 06 to DN 65. The device is available with either 2 configurable outputs (1 transistor output (NPN) and 1 current output 4 mA to 20 mA, 2-wire), or with 3 configurable outputs (2 transistor outputs (NPN/PNP) and 1 current output 4 mA to 20 mA, 2-wire), or with 4 configurable outputs (2 transistor outputs (NPN/PNP) and two 4 mA to 20 mA current outputs, 3-wire). The device converts the measurement signal, displays various values in different units (if the display/configuration module is installed), and calculates the output signals transmitted via one or two M12 connectors. With the help of either one or two transistor outputs, the measuring device can control an electrical valve, activate an alarm, and establish one or two control loops using one or two current outputs.

Cover

Polycarbonate (PC), transparent (opaque on request)

Housing

Stainless steel 1.4404 (316L), PPS

Screw

Stainless steel 1.4401 (316 (A4))

Grounding terminal and screw

Stainless steel 1.4301 (304 (A2))

Seal

EPDM, silicone

Fixed connector holder

PPS CF30

Fixed connector

Nickel-plated brass (stainless steel on request)

Sensor armature

Brass, stainless steel, PVC, PP or PVDF (depending on the Inline sensor-fitting variant Type S030)

Axis and bearing

Ceramics (Al2O3)

Paddle wheel

PVDF

Sensor-fitting body

Brass, stainless steel, PVC, PP or PVDF (depending on the Inline sensor-fitting variant Type S030)

Compatibility

Any pipe from DN 06…DN 65 which are fitted with Bürkert Type S030 Inline sensor-fitting.

Pipe diameter

DN 06…DN 65

Measuring principle

Paddle wheel

Measuring range

Flow rate: 0.5…1200 l/min (0.13…320 gpm)

HS Code

9026.10
