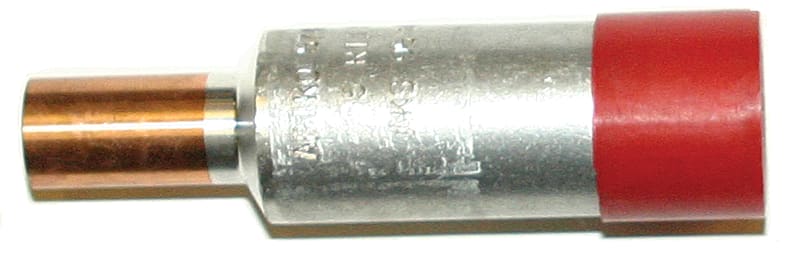

Abiko AKS 240/95 Aluminium-Copper Bimetallic Through Connector 240 mm² Al / 95 mm² Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko AKS 240/95 — aluminium-copper (AlCu) bimetallic through connector that makes an in-line joint between a 240 mm² aluminium conductor and a 95 mm² copper conductor. The aluminium and copper barrels are friction-welded from solid material, so the dissimilar conductors are joined directly without a separate bimetal transition. Each barrel is compression-crimped with its matching die; accepts solid (IEC 60228 Class 1) and stranded (Class 2) conductors.
Technical Specifications
- Type
- Aluminium-copper (AlCu) bimetallic through / transition connector
- Aluminium conductor
- 240 mm²
- Copper conductor
- 95 mm²
- Function
- In-line joint from an aluminium conductor to a copper conductor
- Material
- Friction-welded solid aluminium and electrolytic copper barrels
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2)
- Crimp
- Compression on each barrel with the matching die
- Compression connector standard
- IEC 61238-1
- Manufacturer part number (MPN)
- AKS 240/95
- EAN / GTIN
- 7070920012547
- Sales unit
- pcs
- Package quantity
- 3 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920012547
- SAP 1000004954
- Code 828573
Product Documentation
