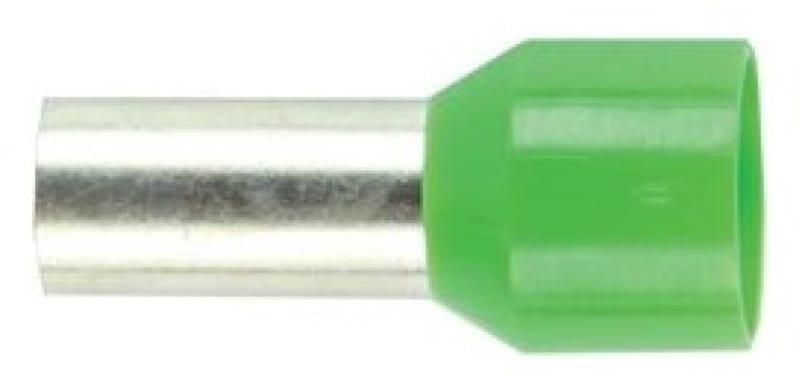

Abiko Insulated Wire-End Ferrule 16 mm² Green Gigastor
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 16 GRØNN GST — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 16 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded green by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 16 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Green Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko Gigastor (Elpress Group) Manufacturer part number (MPN): 16 GRØNN GST EAN / GTIN: 7070920017757 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920017757
- SAP 1200016586
- Code 81382943
Product Documentation
More from Abiko
Abiko
Abiko A 2519 SR Insulated Pin Cable Lug 2.5 mm² (Blue)
Abiko
Abiko B 1507 Steel Uninsulated Flat Receptacle 0.5–1.5 mm², 6.3 × 0.8 mm
B 1507 STÅL
Abiko
Abiko Crimping tool for insulated connectors, 0.75–6 mm² (ESA 0760)
Abiko
Abiko Crimping tool for uninsulated connectors, 0.75–6 mm²
DKB 0760
Abiko
Round PIN, Insulated MALE 1,5 mm²
A 1504 HA
Abiko
Abiko Crimping die jaw (TBC-5 -C6)
Abiko
Channel Shears 70mm (sx 10)
SX 10
Abiko
Abiko A 4630 SRM Insulated Pin Cable Lug 4–6 mm² (Macrolon)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
