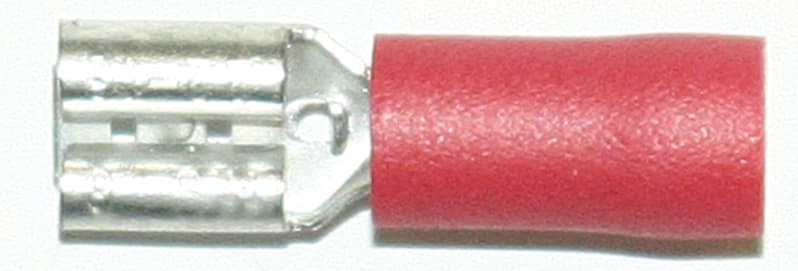

Abiko A 0503 FL 8 Insulated Flat Receptacle 0.5–1.5 mm², 2.8 × 0.8 mm (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 0503 FL 8 — insulated flat receptacle (female push-on) for a 2.8 × 0.8 mm flat push-on connection terminating a 0.5–1.5 mm² conductor. The tin-plated brass contact carries a tin-plated copper crimp barrel and a halogen-free Nylon (PA) insulation sleeve, colour-coded red for the 0.5–1.5 mm² conductor range. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Insulated flat receptacle (female push-on) per DIN 46247
- Conductor cross-section
- 0.5–1.5 mm²
- Insulation colour code
- Red
- Tab dimension
- 2.8 × 0.8 mm
- Material
- Brass contact body, tin-plated; copper crimp barrel, tin-plated
- Insulation
- Nylon (PA), halogen-free, easy-entry
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 0503 FL 8
- EAN / GTIN
- 7070920011144
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011144
- SAP 1000020300
- Code 8157822
Product Documentation
