Abiko Insulated Wire-End Ferrule 16 mm² Green long barrel
Pricing
Request a quote
We reply within 24 hours
Product Description

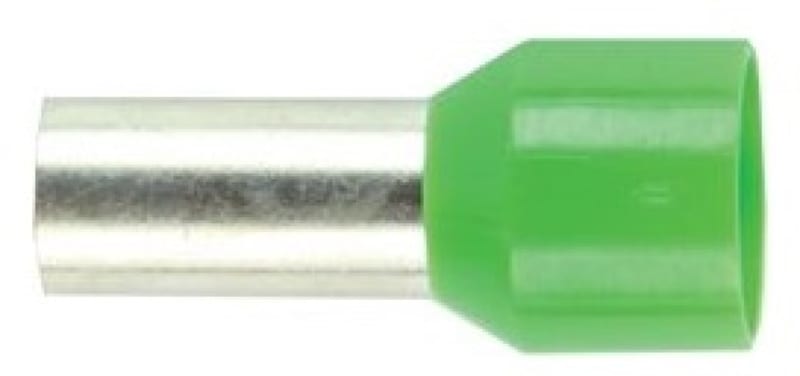

Abiko 16 GRØNN LANG — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 16 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded green by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 16 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Green Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 16 GRØNN LANG EAN / GTIN: 7070920009431 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009431
- SAP 1000028588
- Code 8209623
Product Documentation
More from Abiko
Abiko
Abiko Insulated Wire-End Ferrule 10 mm² Ivory long barrel
10,0 ELF LANG
Abiko
Abiko KR 6-6 Copper Tube Cable Lug 6 mm² M6
Abiko
Abiko C 6 C-Connector 25 mm²
Abiko
Abiko KRTS 95-8 Copper Tube Cable Lug 95 mm² M8 (Narrow Palm)
Abiko
Abiko A 4610 R Insulated Ring Terminal 6 mm² M10 (Yellow)
Abiko
Abiko Insulated Wire-End Ferrule 2.5 mm² Blue
2,5 BL?
Abiko
Abiko A 2543 R Insulated Ring Terminal 2.5 mm² M4 (Blue)
Abiko
Abiko Insulated Wire-End Ferrule 0.25 mm² Light Blue
0,25 LYSEBL?
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 16 GRØNN LANG?
- 16 GRØNN LANG can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 16 GRØNN LANG.
- What is the HS code for 16 GRØNN LANG?
- The customs tariff (HS) code for 16 GRØNN LANG is 8536.90.
- Who manufactures 16 GRØNN LANG?
- 16 GRØNN LANG is a Abiko product in the Electrical Components range.
- Is a datasheet available for 16 GRØNN LANG?
- Yes — the 16 GRØNN LANG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 16 GRØNN LANG?
- The minimum order quantity is 1.
- Is 16 GRØNN LANG available?
- Yes — 16 GRØNN LANG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
