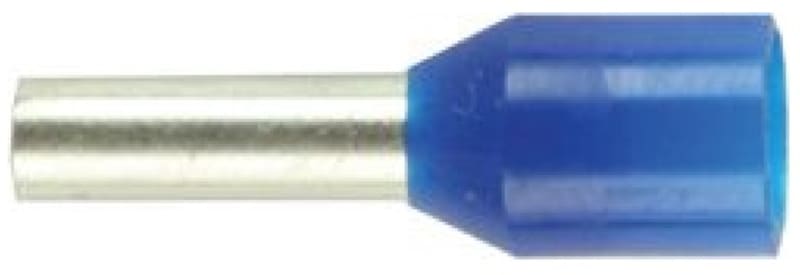

Abiko Insulated Wire-End Ferrule 2.5 mm² Blue
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 2,5 BL? — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 2.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded blue by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule
- Conductor cross-section
- 2.5 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Insulation colour
- Blue
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 2,5 BL?
- EAN / GTIN
- 7070920009332
- Sales unit
- pcs
- Package quantity
- 500 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009332
- SAP 1000040159
- Code 8521450
Product Documentation
More from Abiko
Abiko
Abiko A 2543 R Insulated Ring Terminal 2.5 mm² M4 (Blue)
Abiko
Abiko Insulated Wire-End Ferrule 0.25 mm² Light Blue
0,25 LYSEBL?
Abiko
Abiko A 0824 CWT Solder-Ring Heat-Shrink Butt Splice 0.75 mm²
Abiko
Abiko Uninsulated Wire-End Ferrule 10 mm² 18 mm barrel
10-18
Abiko
Abiko Uninsulated Wire-End Ferrule 70 mm² 25 mm barrel
70-25
Abiko
Abiko KRT 150-10 Copper Tube Cable Lug 150 mm² M10
Abiko
Abiko Insulated Twin Wire-End Ferrule 2×1 mm²
1,0 TVILL
Abiko
Abiko Uninsulated Wire-End Ferrule 25 mm² 18 mm barrel
25-18
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
