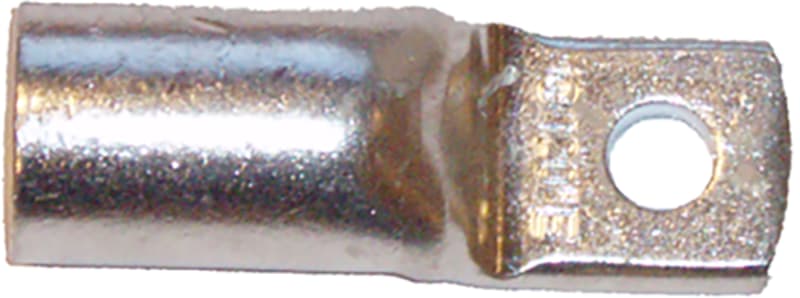

Abiko KRTS 95-8 Copper Tube Cable Lug 95 mm² M8 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 95-8 — compression (crimp) copper tube cable lug for terminating a 95 mm² conductor onto an M8 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 95 mm²
- Stud / bolt hole
- M8
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 95-8
- EAN / GTIN
- 7070920016842
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016842
- SAP 1200053461
- Code 81891789
Product Documentation
More from Abiko
Abiko
Abiko A 4610 R Insulated Ring Terminal 6 mm² M10 (Yellow)
Abiko
Abiko Insulated Wire-End Ferrule 2.5 mm² Blue
2,5 BL?
Abiko
Abiko A 2543 R Insulated Ring Terminal 2.5 mm² M4 (Blue)
Abiko
Abiko Insulated Wire-End Ferrule 0.25 mm² Light Blue
0,25 LYSEBL?
Abiko
Abiko A 0824 CWT Solder-Ring Heat-Shrink Butt Splice 0.75 mm²
Abiko
Abiko Uninsulated Wire-End Ferrule 10 mm² 18 mm barrel
10-18
Abiko
Abiko Uninsulated Wire-End Ferrule 70 mm² 25 mm barrel
70-25
Abiko
Abiko KRT 150-10 Copper Tube Cable Lug 150 mm² M10
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRTS 95-8?
- KRTS 95-8 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is KRTS 95-8.
- What is the HS code for KRTS 95-8?
- The customs tariff (HS) code for KRTS 95-8 is 8536.90.
- Who manufactures KRTS 95-8?
- KRTS 95-8 is a Abiko product in the Electrical Components range.
- Is a datasheet available for KRTS 95-8?
- Yes — the KRTS 95-8 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRTS 95-8?
- The minimum order quantity is 1.
- Is KRTS 95-8 available?
- Yes — KRTS 95-8 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
