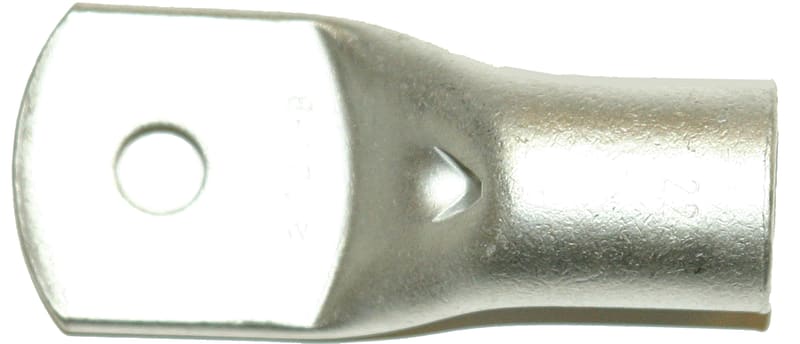

Abiko KRF 400-12 Copper Tube Cable Lug 400 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRF 400-12 — compression (crimp) copper tube cable lug for terminating a 400 mm² conductor onto an M12 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 400 mm²
- Stud / bolt hole
- M12
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRF
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRF 400-12
- EAN / GTIN
- 7070920007758
- Sales unit
- pcs
- Package quantity
- 25 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920007758
- SAP 1000055948
- Code 8540091
Product Documentation
More from Abiko
Abiko
Abiko A 2519 SRM Insulated Pin Cable Lug 2.5 mm² (Macrolon)
Abiko
Abiko KST 185 Copper Compression Butt Splice 185 mm² (Uninsulated)
Abiko
Abiko 70-10 Copper Tube Cable Lug 70 mm² M10, 90° Angled Palm
70-10 90 GR
Abiko
Abiko KRF 35-10 Copper Tube Cable Lug 35 mm² M10
Abiko

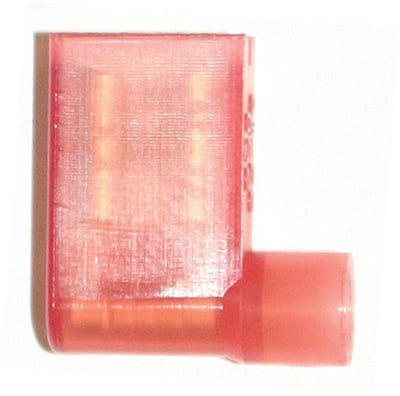

Abiko A 2507 FLB 8 Insulated Flag Flat-Tab 2.5 mm² (Blue)
