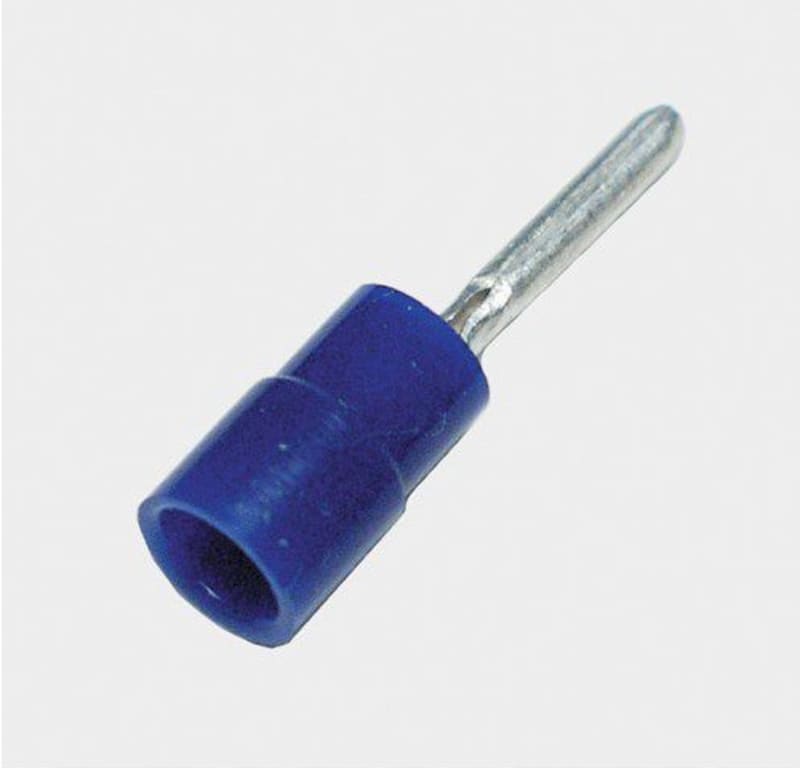

Abiko A 2519 SRM Insulated Pin Cable Lug 2.5 mm² (Macrolon)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 2519 SRM — insulated pin cable lug (pin cable lug) that terminates a 2.5 mm² copper conductor in a round pin (pin) form to DIN 46231, for insertion into pin-type terminals and clamp connections. Electrolytic tin-plated copper barrel in a transparent Macrolon (polycarbonate) easy-entry sleeve that leaves the crimp visible for inspection. Suitable for solid, stranded and fine-stranded copper conductors (IEC 60228) and rated for strain-relieved connections; crimped with matching Abiko/Elpress dies for switchboard, control-panel and marine installations.
Technical Specifications
- Type
- Insulated pin cable lug (pin cable lug), round pin form per DIN 46231
- Conductor cross-section
- 2.5 mm²
- Terminal form
- Round pin (pin)
- Insulation
- Macrolon (polycarbonate), transparent easy-entry sleeve
- Material
- Copper, tin-plated (electrolytic)
- Conductor
- Solid / stranded / fine-stranded copper (IEC 60228)
- Strain-relief connection
- Yes
- Standard
- DIN 46231
- Series
- Abiko A (pre-insulated) — Macrolon
- Manufacturer part number (MPN)
- A 2519 SRM
- EAN / GTIN
- 7070920009981
- Sales unit
- pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009981
- SAP 1200072147
- Code 81921846
Product Documentation
