Abiko KRTS 50-8 Copper Tube Cable Lug 50 mm² M8 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 50-8 — compression (crimp) copper tube cable lug for terminating a 50 mm² conductor onto an M8 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M8
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 50-8
- EAN / GTIN
- 7070920016774
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016774
- SAP 1200071947
- Code 81923940
Product Documentation
More from Abiko
Abiko
Abiko KRTS 120-10 Copper Tube Cable Lug 120 mm² M10 (Narrow Palm)
Abiko
Abiko KRF 70-12 Copper Tube Cable Lug 70 mm² M12
Abiko

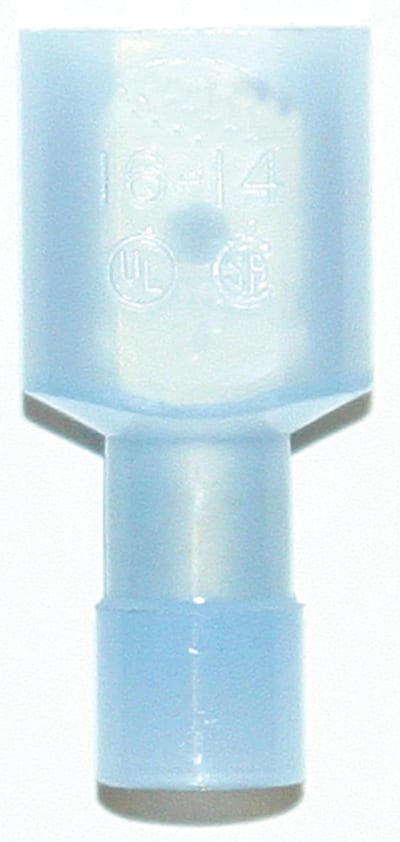

Abiko A 2507 HF Fully-Insulated Flat Tab, 6.3 × 0.8 mm
Abiko
Abiko KST 35 Copper Compression Butt Splice 35 mm² (Uninsulated)
Abiko

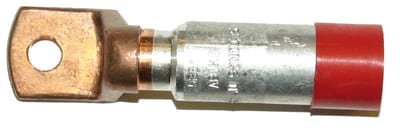

Abiko AKK 95-12 Aluminium-Copper Bimetallic Compression Cable Lug 95 mm² M12
Abiko
Abiko KRT 70-6 Copper Tube Cable Lug 70 mm² M6
Abiko

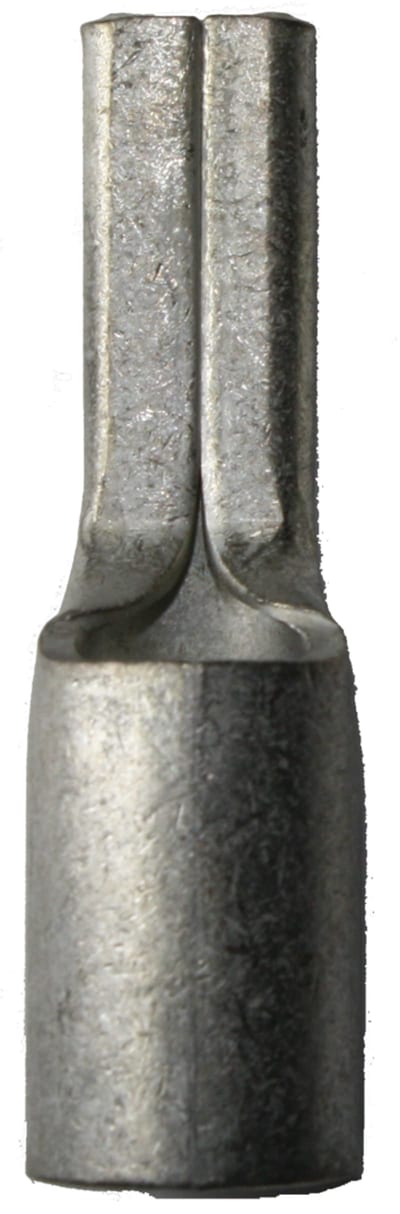

Abiko 2016968 Uninsulated Pin Cable Lug 16 mm²
