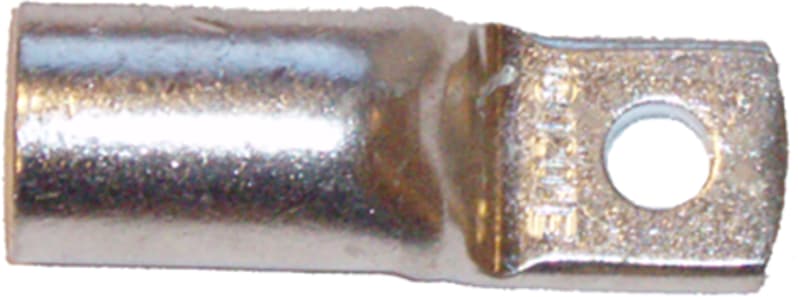

Abiko KRTS 120-10 Copper Tube Cable Lug 120 mm² M10 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 120-10 — compression (crimp) copper tube cable lug for terminating a 120 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 120 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 120-10
- EAN / GTIN
- 7070920016897
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016897
- SAP 1200071954
- Code 81923818
Product Documentation
