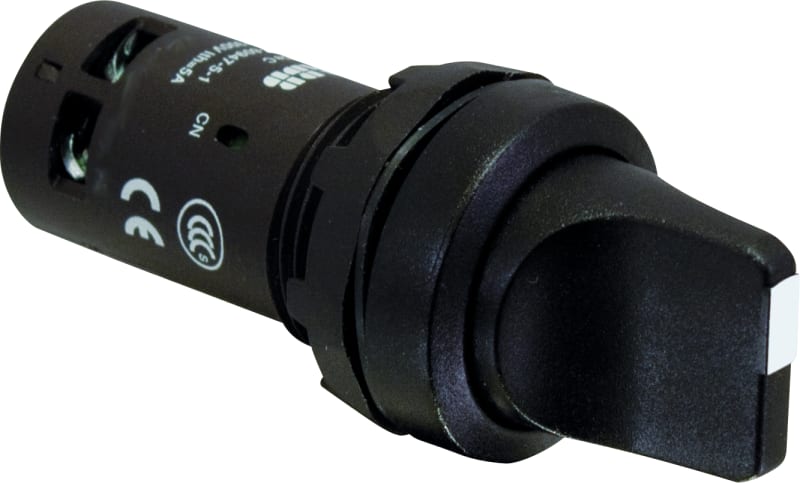

Rotary switch 3POS Black
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB C3SS1-10B-20 — The C3SS1-10B-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V. This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.The compact range has a high level of dust and water resistance.
Technical Specifications
- Manufacturer part number (MPN)
- C3SS1-10B-20
- EAN / GTIN
- 7320500246726
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Country of Origin
- China
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 0.03 m
- Product Net Height
- 0.03 m
- Product Net Depth / Length
- 0.072 m
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -40 ... +85 °C
- Color
- Black
- Bezel Material
- Plastic
- Illumination
- Non-illuminated
- Function
- Maintained
- Sub-Function
- 3-position
- Maintained Positions
- A, B, C
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 2
- Enclosure Type NEMA
- Type1; Type12; Type13; Type3R; Type4; Type4X
- Rated Insulation Voltage (U i )
- 300 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Operational Voltage
- Maximum 300 V
- Rated Operational Current DC-13 (I e )
- (24 V) 0.3 A; (125 V) 0.2 A
- Rated Operational Current AC-15 (I e )
- (240 V) 2 A; (220 / 240 V) 2 A
- Power Loss
- Maximum 5 W
- Mechanical Durability
- 0.5 million
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm²; Flexible with Ferrule 2 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²; Flexible 1 x 0.5 ...1.5 mm²; Flexible 2 x 0.5 ...1.5 mm²; Solid 1 x 0.5...1.5 mm²; Solid 2 x 0.5...1.5 mm²
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.8 N·m
- Wire Stripping Length
- 6 mm
- Connecting Capacity UL/CSA
- 1x 22...14 AWG; 2x 22...14 AWG
- Degree of Protection
- Front IP66; Front IP67; Front IP69K; Terminals IP20
- CB Certificate
- CQC_CN_CN50749
- CCC Certificate
- 2024010305654692
- CQC Certificate
- CQC2003010305054693
- cURus Certificate
- UL_E496500-20171020
- Declaration of Conformity - CE
- 2CMT2015-005451
- Declaration of Conformity - UKCA
- 2CMT2020-006121
- DNV GL Certificate
- 9AKK107046A3749
- EAC Certificate
- RU C-CN.ME77.B.00587/20
- Object Classification Code
- S
- ETIM 6
- EC001029 - Selector switch, complete
- eClass
- V11.0 : 27371243
- UNSPSC
- 39122217
- IDEA Granular Category Code (IGCC)
- 5215 >> Selector Switch Complete Assemblies
- E-Number (Finland)
- 2312899
- E-Number (Norway)
- 4372694
- E-Number (Sweden)
- 3711306
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7320500246726
- SAP 1000077956
- Code 8568968
Product Documentation
More from ABB Automasjon
ABB Automasjon

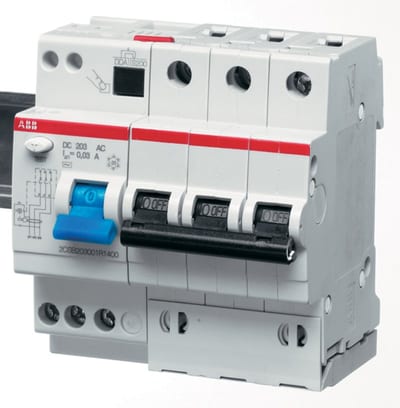

ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1634
