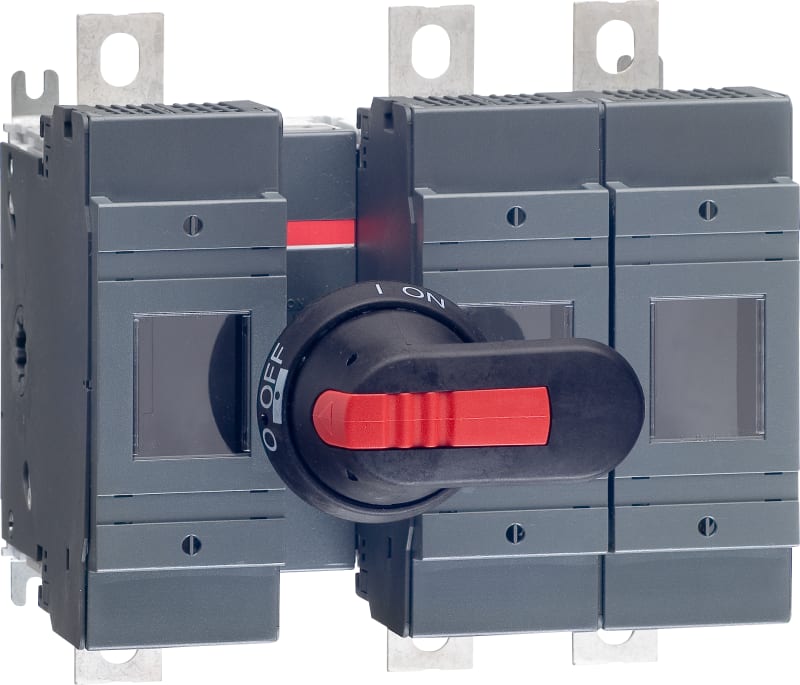

ABB OS250D12P Switch Fuses,Front Operated,3-Pole,12 (Between the Poles),DIN,0,1,Handle and shaft included
Pricing
Request a quote
We reply within 24 hours
Overview
ABB Automasjon ABB OS250D12P Switch Fuses,Front Operated,3-Pole,12 (Between the Poles),DIN,0,1,Handle and shaft included is listed under Switchgear & Protection / Fuse Switch-Disconnectors. HS code: 8536.90; Sales unit: pcs; Product Sales Status: Active; Degree of Protection: acc. to IEC 60529 IP20; Pollution Degree: 3; Product Net Width: 208 mm.
Technical Specifications
- Manufacturer part number (MPN)
- OS250D12P
- EAN / GTIN
- 6417019235110
- HS code
- 8536.90
- Sales unit
- pcs
- Lead Time
- 28 day
- Product Sales Status
- Active
- ABB Site Meeting Group Waste To Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions
- 1SCC311049M0201
- Environmental Product Declaration - EPD
- 1SCC311197D0201
- Degree of Protection
- acc. to IEC 60529 IP20
- Pollution Degree
- 3
- Product Net Width
- 208 mm
- Product Net Height
- 193 mm
- Product Net Depth / Length
- 154 mm
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 250 A
- Conventional Thermal Current (I the )
- Fully Enclosed 250 A
- Fuse Size
- NH0; NH1
- Fuse System
- DIN
- Handle Type
- Pistol
- Mounting Type
- Base mounting
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 17 W; Total 51 W
- Rated Conditional Short-Circuit Current (I nc )
- (690 V) 100 kA
- Rated Current (I n )
- Main Circuit 250 A
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Current AC-21A (I e )
- (500 V) 250 A; (690 V) 250 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A
- Rated Operational Power AC-23A (P e )
- (220 ... 240 V) 75 kW; (400 V) 140 kW; (415 V) 145 kW; (500 V) 170 kW; (690 V) 250 kW
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 8 kiloampere rms
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- 12 (Between the Poles)
- Terminal Type
- Lug terminals
- Terminal Width
- 25 mm
- Tightening Torque
- 30 ... 44 N·m
- A2L Certificate – IEC
- 1SCC311209D0201
- ATEX Certificate
- No certification needed
- CCC Certificate
- CCC OS200-250 2016
- Declaration of Conformity - CE
- 1SCC311095D2704
- DNV GL Certificate
- 1SCC311123D0203
- UL Certificate
- No certification needed
- Object Classification Code
- Q
- ETIM 9
- EC001040 - Fuse switch disconnector
- UNSPSC
- 39122233
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- eClass
- V11.1 : 27371401
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3661230
- E-Number (Norway)
- 1682612
- E-Number (Sweden)
- 3172072
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6417019235110
- SAP 1000010662
- Code 8479472
