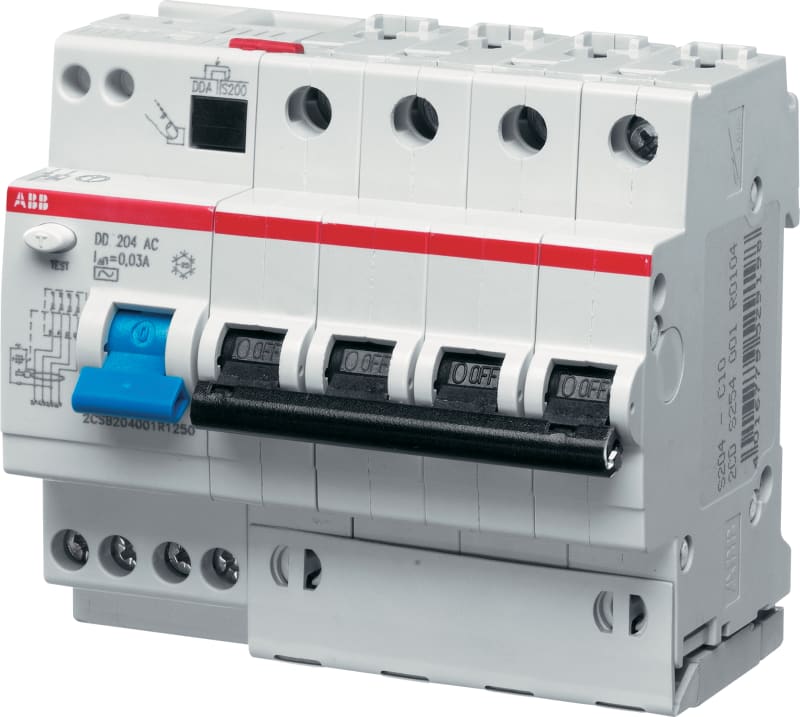

Earth-fault RCD DS204 M A-B40/0,03
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR274101R1405 — The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR274101R1405
- EAN / GTIN
- 8012542848202
- Sales unit
- pcs
- Type of Residual Current
- Type A
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- (400 V AC) 15 kA
- Power Supply Connection
- Arbitrary
- Electrical Endurance
- 10000 cycle
- Number of Protected Poles
- 4
- Number of Poles
- 4P
- Number of Earth Leakage Circuit Breakers (ELCBs)
- 1
- Operating Characteristic
- Instantaneous
- Position of Neutral Terminals
- Right; Left
- Release Type
- B
- Options Provided
- None
- Accessories Available
- Yes
- Connecting Capacity
- Busbar 10 mm²; Rigid 16 ... 25 mm²; Flexible 16 ... 25 mm²
- Short-Circuit Current Rating (SCCR)
- 30 mA
- Tripping Characteristic
- B
- Rated Voltage (U r )
- 400 V AC
- Rated Operational Voltage
- 400 V AC
- Rated Current (I n )
- 40 A
- Rated Residual Current
- 30 mA
- Rated Short-Circuit Capacity
- (400 V AC) 10 kA
- Maximum Breaking Capacity
- 10 kA
- Rated Frequency (f)
- 50 … 60 Hz
- Power Loss
- Total 21.6 W
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -40 ... +70 °C
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Environmental Information
- Refer to RoHS
- Product Net Width
- 105 mm
- Product Net Height
- 93 mm
- Product Net Depth / Length
- 69 mm
- EPLAN Data
- 9AAC126543_EPLAN
- Declaration of Conformity - CE
- 9AKK106713A5607
- Instructions and Manuals
- 9AKK107045A1451
- ETIM 9
- EC002281 - Distributor assembly with combination RCCB/MCB
- UNSPSC
- 39121601
- eClass
- V11.0 : 27400618
- Object Classification Code
- F
- Standards
- IEC/EN 60947-2; IEC/EN 61009-1
- Rated fault current
- 30 mA
- Concurrently switching neutral conductor
- No
- Release characteristic
- B
- Breaking capacity
- 10 kA
- Wiring on terminal block
- No
- Height
- 93 mm
- Width
- 105 mm
- Depth
- 69 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8012542848202
- SAP 1000067620
- Code 8556112
Product Documentation
