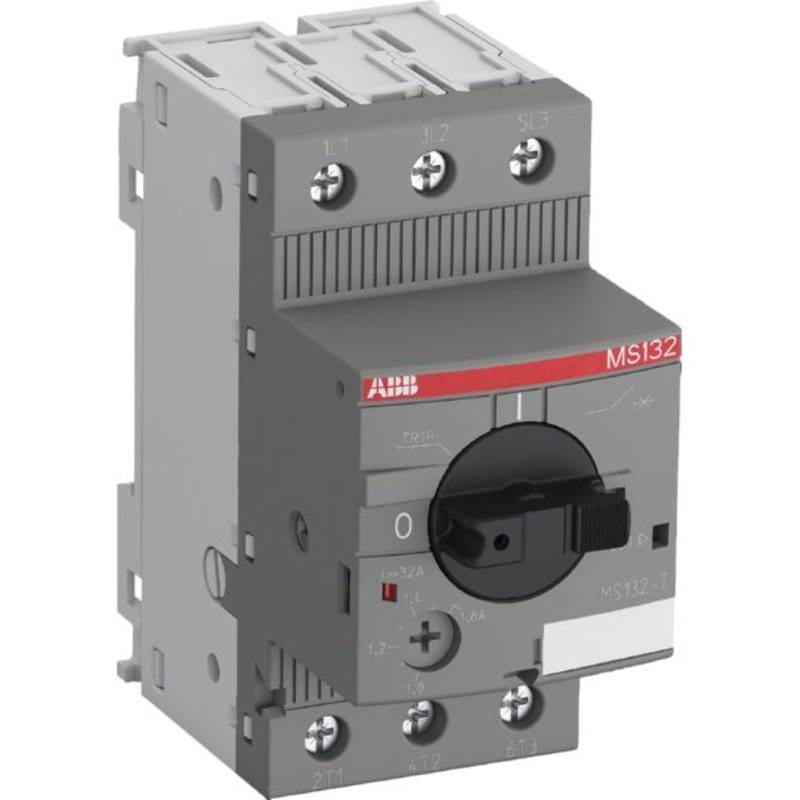

ABB MS132-4.0T Manual Motor Starter for Transformer Protection, 2.5–4.0 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon MS132-4.0T MS132-4.0T 2,5-4,0A motor protection circuit breaker with overload protection and fast short-circuit release on 20xIn.
Technical Specifications
- Manufacturer part number (MPN)
- MS132-4.0T
- EAN / GTIN
- 4013614484988
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Width
- 45 mm
- Height
- 97.8 mm
- Depth
- 86.5 mm
- Rated operation power at AC-3, 400 V
- 1.5 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 4 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 110–690 V
- Overload release current setting
- 2.5–4 A
- Power loss
- 4.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Turn button
- Switch off technique
- Thermomagnetic
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 80 A
- Phase failure sensitive
- Yes
- Device construction
- Complete device in housing
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614484988
- SAP 1200092810
- Code 81961166
Product Documentation
