Modular LOAD-Break SWITCH, E204/80R
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDE284001R0080 — These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDE284001R0080 EAN / GTIN: 4016779646284 HS code: 8536.90 Sales unit: pcs Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 81.9 % ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Extended Product Lifetime: Product Durability End Of Life Disassembling Instructions: 9AKK108469A1170 Environmental Product Declaration - EPD: 9AKK108471A4712 Rated Service Short-Circuit Breaking Capacity (I cs ): 25 kA Number of Poles: 4P Switch Type: Off Recommended Screw Driver: Pozidriv 2 Accessories Available: Yes Cover Color: Grey Installation Size: acc. to DIN 43880 3 Rated Voltage (U r ): 400 V; 12 V minimum Rated Operational Voltage: 230 / 400 V AC Voltage Protection Level ( Up): 4 kV Input Voltage Type: AC Rated Current (I n ): 80 A Rated Short-Circuit Capacity: (230 / 400 V AC) 25 kA Rated Conditional Short-Circuit Current (I nc ): 25 kA Rated Frequency (f): 50/60 Hz Power Loss: at Rated Operating Conditions per Pole 2.6 W Number of Contacts CO: 0 Number of Contacts NC: 0 Number of Contacts NO: 4 Overvoltage Category: IV Degree of Protection: IP10 Pollution Degree: 3 Width in Number of Modular Spacings: 4 Product Net Width: 70 mm Product Net Height: 85 mm Product Net Depth / Length: 69 mm Built-In Depth ( t 2 ): 70 mm Declaration of Conformity - CE: 2CDK441011D0403 Instructions and Manuals: 2CSC400002D0208 Mounting Type: DIN-Rail ETIM 9: EC001047 - Selective main line circuit breaker UNSPSC: 39122233 eClass: V11.0 : 27142301 Object Classification Code: Q Standards: IEC/EN 60947-3 Certification Agency: EN; IEC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779646284
- SAP 1000076441
- Code 8755285
Product Documentation
More from ABB Automasjon
ABB Automasjon
Contactor AF400-30-11 200-500V (AF400-30-11-71 (250-500V 50-60Hz / Dc))
AF400-30-11-71 (250-500V 50-60HZ / DC)
ABB Automasjon
ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1135
ABB Automasjon
Contactor AF80-22-00-11 (AF80-22-00-11 24-60V50/60HZ 20-60VDC)
ABB Automasjon

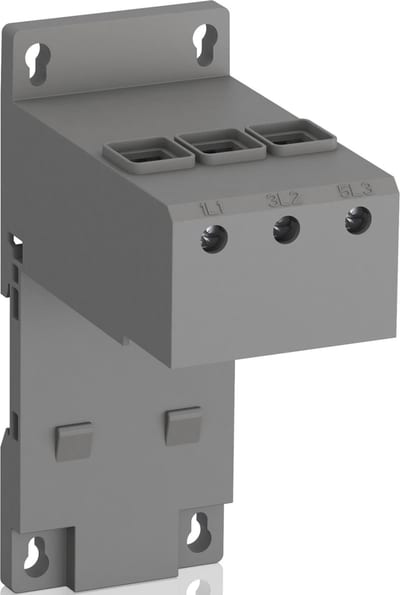

DB65: for TF65 (for AF40-AF65)
ABB Automasjon

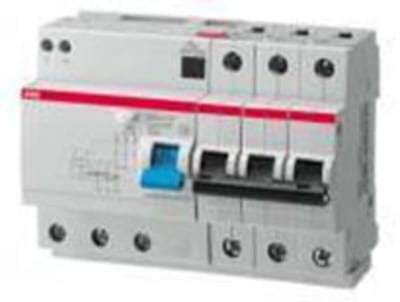

ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1635
