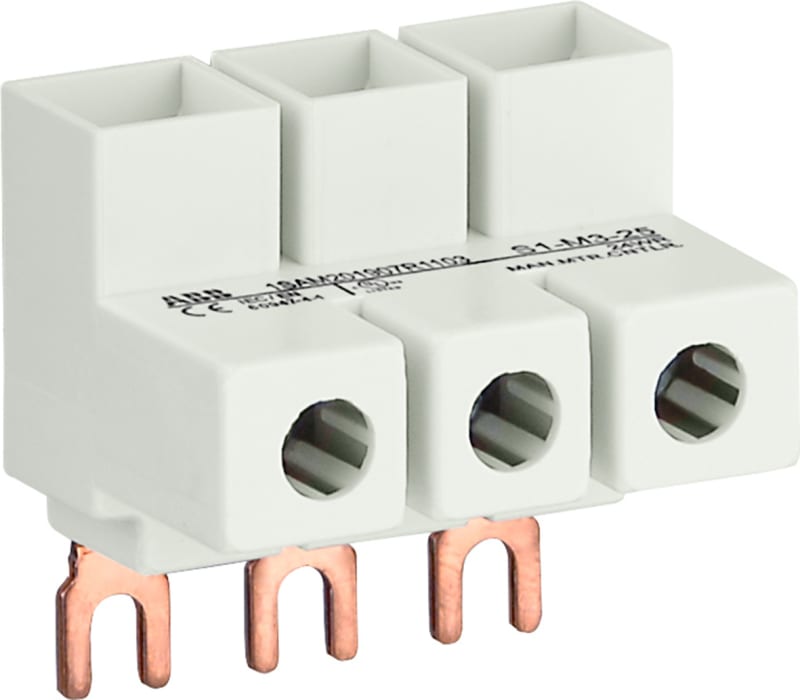

Feed Block S1-M3-35
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S1-M3-35 — three phase feeder terminals allow the connection of bigger cable cross sections up to 35mm². They are usable with MS116 and MS132 manual motor starters. The rated current is 100 A. S1-M3-35 can also be used for line-side terminal spacing on MS132 which allows their usage in Type E / Type F applications.
Technical Specifications
- Manufacturer part number (MPN)
- S1-M3-35
- EAN / GTIN
- 4013614400834
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Product Net Width
- 45.5 mm
- Product Net Height
- 45.7 mm
- Product Net Depth / Length
- 35.3 mm
- Rated Operational Voltage
- 690 V AC; 250 V DC
- Rated Operational Current (I e )
- 100 A
- Number of Poles
- 3P
- Degree of Protection
- IP20
- Terminal Type
- Screw Terminals
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1x 10 ... 35 mm²; Flexible with Insulated Ferrule 1x 10 ... 35 mm²; Flexible 1x 10 ... 35 mm²; Rigid 1x 10 ... 35 mm²
- Tightening Torque
- Main Circuit 4.5 N·m
- Wire Stripping Length
- Main Circuit 12 mm
- Recommended Screw Driver
- Hexgon SW4
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1
- Remarks
- UL/CSA Type E/F and IEC
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 8-2 AWG; Stranded 1x 8-2 AWG
- Tightening Torque UL/CSA
- Main Circuit 40 in·lb
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -50 ... +80 °C
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- UL Certificate
- E121190-20000619
- Object Classification Code
- X
- ETIM 9
- EC000275 - Main line branch terminal
- eClass
- V11.0 : 27400603
- UNSPSC
- 39121117
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- E-Number (Finland)
- 3705960
- E-Number (Norway)
- 4364022
- E-Number (Sweden)
- 3112083
- EAN
- 4013614488221
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614400834
- SAP 1000225441
- Code 81139048
Product Documentation
