Electronic timer On-delay

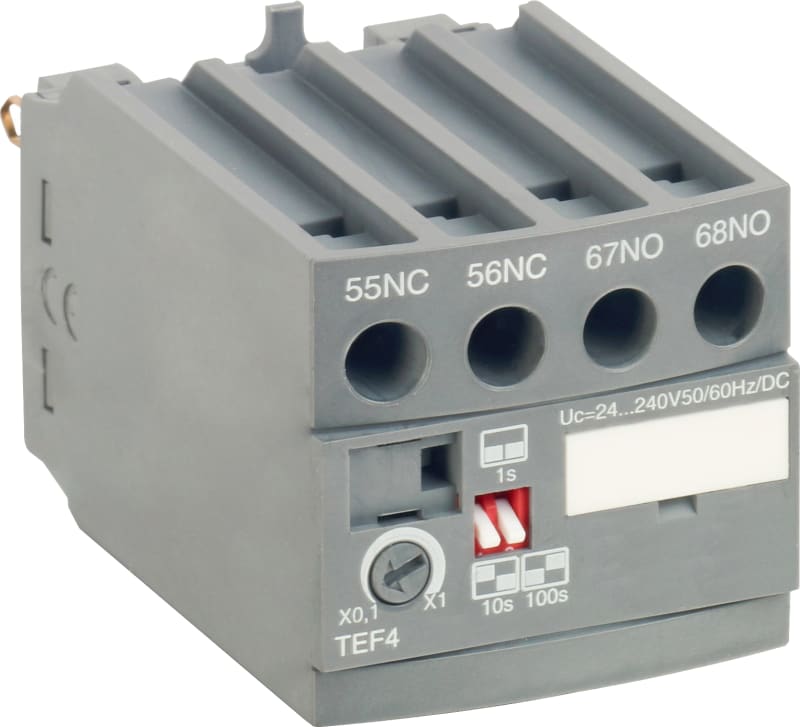

ABB TEF4-ON — is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24.240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-ON is activated by closing the device on which the timer is mounted.

Manufacturer part number (MPN)

TEF4-ON

EAN / GTIN

3471523130630

Sales unit

pcs

Country of Origin

China

Lead Time

0 day

Product Sales Status

Active

Product Net Width

43 mm

Product Net Depth / Length

67.7 mm

Product Net Height

41.6 mm

Number of Auxiliary Contacts NO

1

Number of Auxiliary Contacts NC

1

Number of Poles

2P

Standards

IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L

Rated Operational Voltage

Auxiliary Circuit 240 V AC; Auxiliary Circuit 24 V DC

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz; Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 5 A

Rated Operational Current AC-15 (I e )

(24 / 127 V) 3 A; (220 / 240 V) 1.5 A

Rated Operational Current DC-13 (I e )

(24 V) 1 A / 24 W

Rated Short-time Withstand Current Low Voltage (I cw )

for 0.1 s 8 A; for 1 s 8 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 400 V; acc. to UL/CSA 300 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour; (DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency

3600 cycles per hour

Power Loss

at 3 A per Pole 0.1 W

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque

Auxiliary Circuit 1.2 N·m

Terminal Type

Screw Terminals

Timer Relay Type

ON-Delay

Suitable For

AF09; AF09Z; AF12; AF12Z; AF16; AF16Z; AF26; AF26Z; AF30; AF30Z; AF38; AF38Z; AF40; AF52; AF65; AF80; AF96; AFC09; AFC12; AFC16; AFC26; AFC30; AFC38; NF22E; NFZ22E; NF31E; NFZ31E; NF40E; NFZ40E; NFC22E; NFC31E; NFC40E

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb

Ambient Air Temperature

Close to Contactor for Storage -40 ... +80 °C; Operation -25 ... +70 °C

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible

Without Derating 2000 m

Resistance to Vibrations

3g Closed Position & 2g Open Position 5 ... 300 Hz

A2L Certificate – UL

9AKK108469A4895; 9AKK108469A4896

ABS Certificate

ABS_26-0348269-PDA_FR; ABS_26-0348269-PDA-DUP_CN

CB Certificate

CB_CN46281

CCC Certificate

CCC_2012010303572179

CQC Certificate

CQC2012010303572179

Declaration of Conformity - CCC

2020980303000172

Declaration of Conformity - CE

1SBD250008U1000

Declaration of Conformity - UKCA

1SBD250039U1000

UL Certificate

UL-US-L252354-192-31702102-2; UL-CA-L252354-392-31702102-2

UL Listing Card

UL_E252354

Object Classification Code

K

ETIM 7

EC002060 - Timer block

eClass

V11.0 : 27371308

UNSPSC

39121523

IDEA Granular Category Code (IGCC)

4746 >> Timer controls

E-Number (Finland)

3706012

E-Number (Sweden)

3210205

HS Code

8538.90
