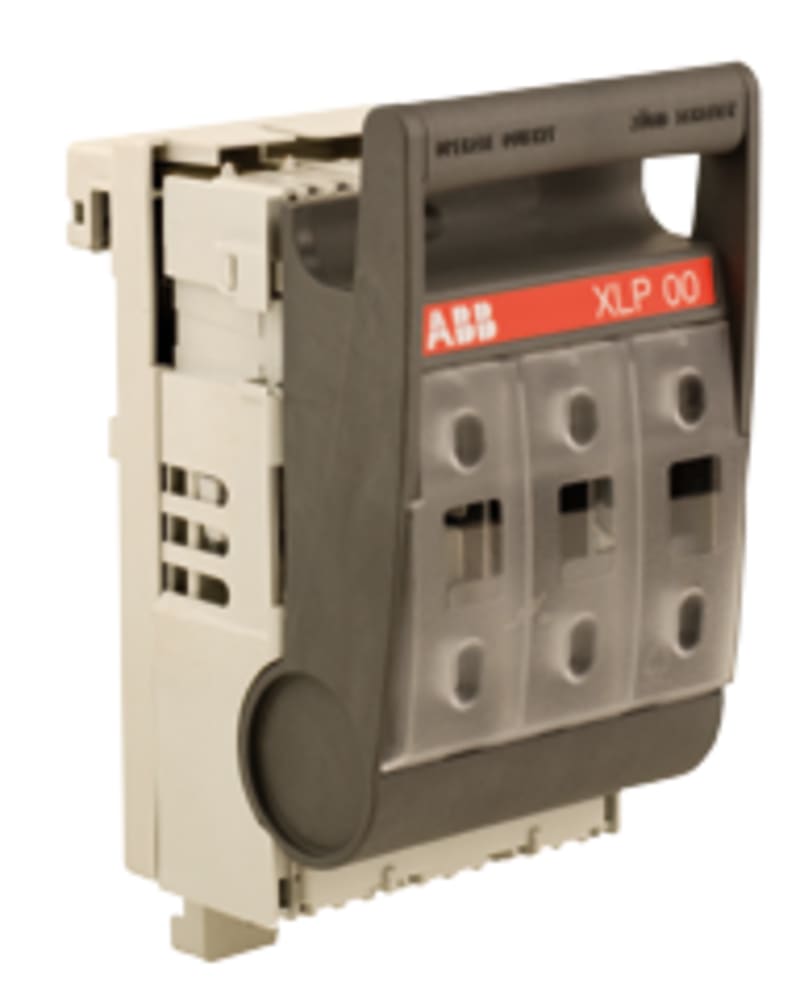

ABB XLP00,3-Pole,160A, incl. A60/60 adapter and 3 Bridge Clamps, cable above 1SEP101917R0001
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SEP101917R0001 — XLP00,3-pole,160A, incl. A60/60 adapter and 3 Bridge Clamps, cable above.
Technical Specifications
- Manufacturer part number (MPN)
- 1SEP101917R0001
- EAN / GTIN
- 7025840015642
- Sales unit
- pcs
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- Degree of Protection
- IP30
- Product Net Width
- 105 mm
- Product Net Height
- 206 mm
- Product Net Depth / Length
- 126 mm
- Device Type Manager (DTM)
- Fuseswitchdisconnector
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH00; NH000
- Fuse System
- DIN
- Handle Type
- Front Cover 3P
- Mounting Type
- 60mm Busbar System
- Number of Poles
- 3P
- Power Loss
- at Rated Load 3.5 W
- Rated Conditional Short-Circuit Current (I nc )
- (690 V) 50 kiloampere rms
- Rated Current (I n )
- 160 A
- Rated Frequency (f)
- Main Circuit 50/60 Hz
- Rated Impulse Withstand Voltage (U imp )
- Main Circuit 8 kV
- Rated Operational Current AC-21B (I e )
- (690 V) 125 A
- Rated Operational Current AC-22B (I e )
- (500 V) 160 A; (800 V) 63 A; (1000 V) 125 A
- Rated Operational Current AC-23B (I e )
- (400V) 125 A
- Rated Operational Voltage
- 400 V AC; 500 V AC; 690 V AC; 800 V AC; 1000 V AC
- Rated Voltage (U r )
- 400 V AC; 500 V AC; 690 V AC; 800 V AC; 1000 V AC
- Special Functions
- Not Included
- Standards
- IEC60947-3; GB/T14048.3
- Terminal Type
- Cable Clamp
- Declaration of Conformity - CE
- 1SEP500050P0001
- Object Classification Code
- S
- ETIM 9
- EC001040 - Fuse switch disconnector
- eClass
- V11.1 : 27371401
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Norway)
- 1687116
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7025840015642
- SAP 1000037122
- Code 8770703
Product Documentation
More from ABB Automasjon
ABB Automasjon
Motor Protection Circuit Breaker MS116- 2,5
MS116-2.5
ABB Automasjon
Auxiliary contact HKF1-20
MS 1XX-HKF 1-20
ABB Automasjon
ABB Inner marking KM-2 NHP 404679R0001
ABB Automasjon
Contactor AF580-30-11 100-250V (AF580-30-11-70 (100-250V 50-60Hz / Dc))
AF580-30-11-70 (100-250V 50-60HZ / DC)
ABB Automasjon
FORSINK.220/250V E1-6 (1SDA038320R0001)
ABB Automasjon

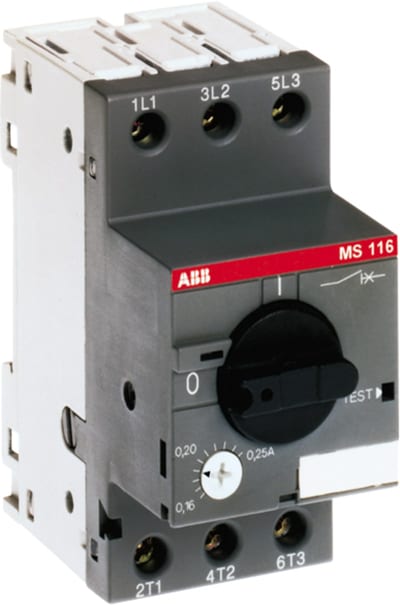

Motor protection circuit breaker MS116-12
